Factory OEM Coaxial Cable Rg59/ RG6/ Kx7 / Rg213/ Rg174 / Rg11/RF4mm Communication Cable Semi Finished OEM
Detailed Photos Indoor CCS 5c2v CATV RG6 Communicate TV Cable with RF Compression Connector Product Description Product Specification RG6/RG6U coaxial cable specificationsMaterial of Inner ConductorBare Copper, CCSStructure of Inner Conductor1/1.02mmMaterial of InsulationFoam PEDiameter of Insulati......
Send Inquiry
Product Description

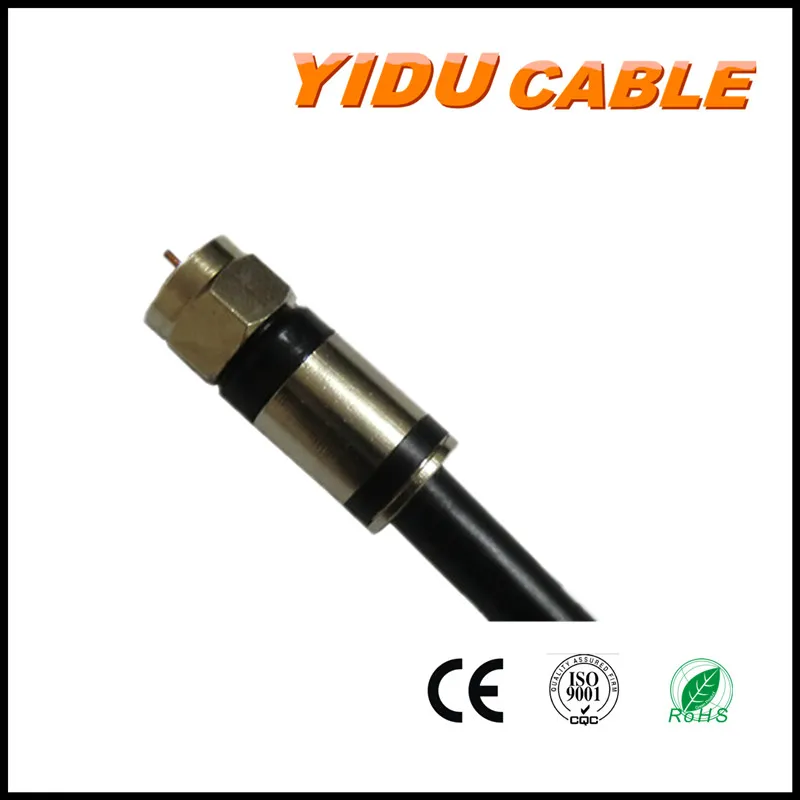

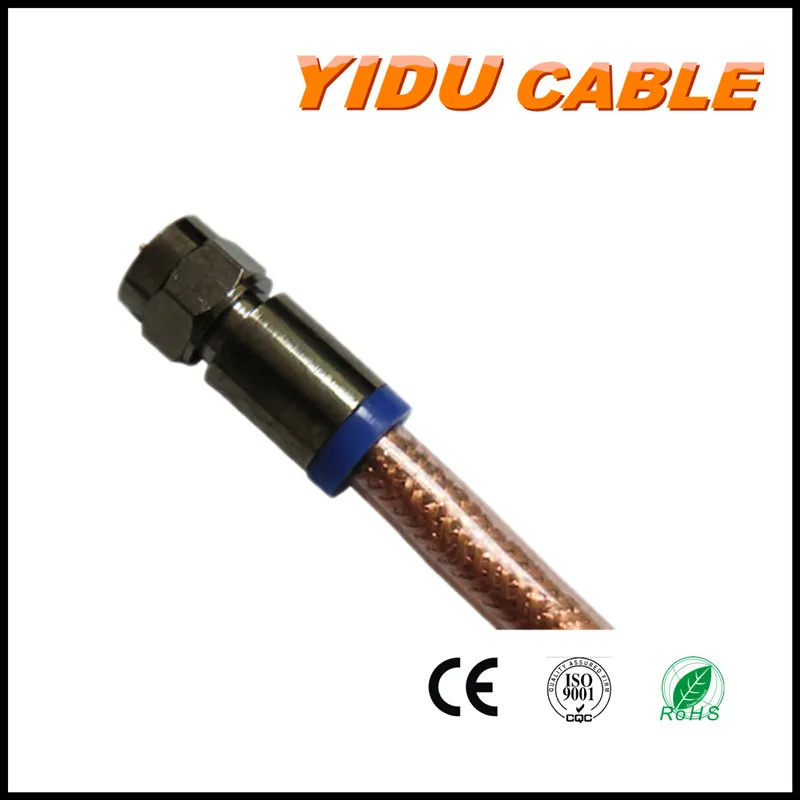

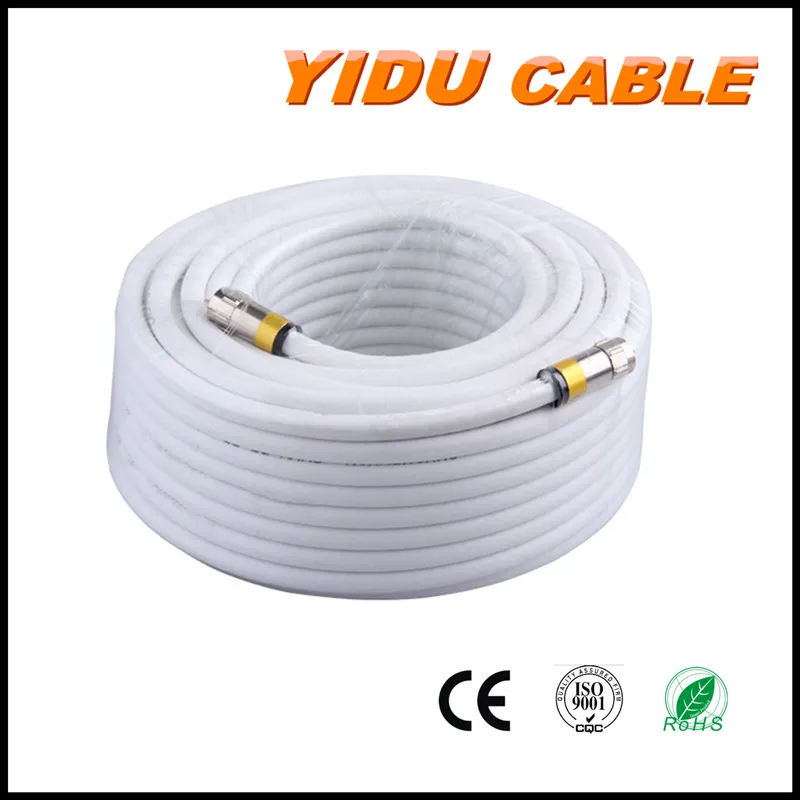

Indoor CCS 5c2v CATV RG6 Communicate TV Cable with RF Compression Connector
Product Specification

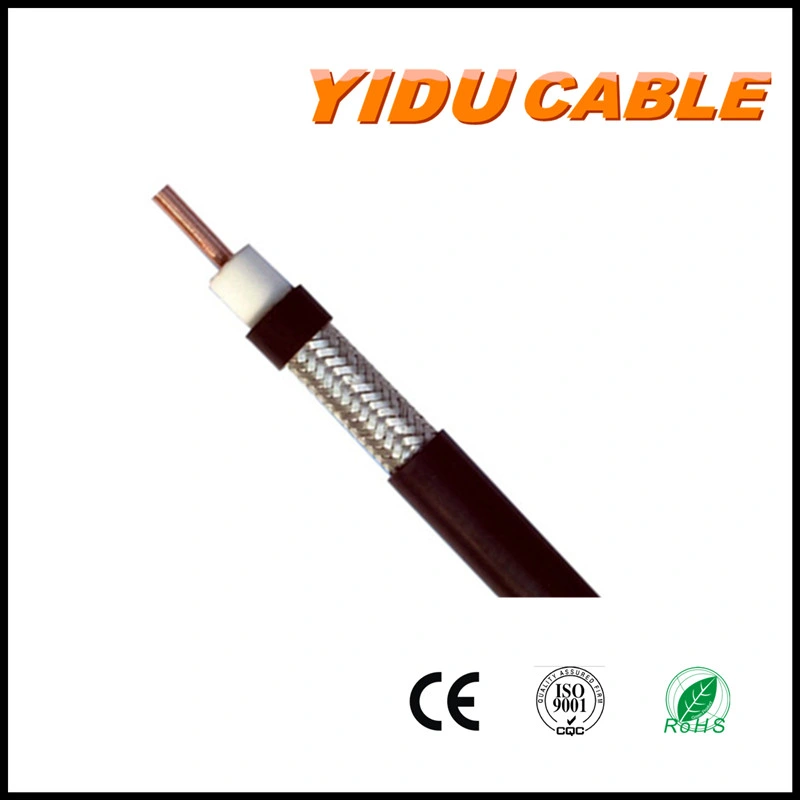

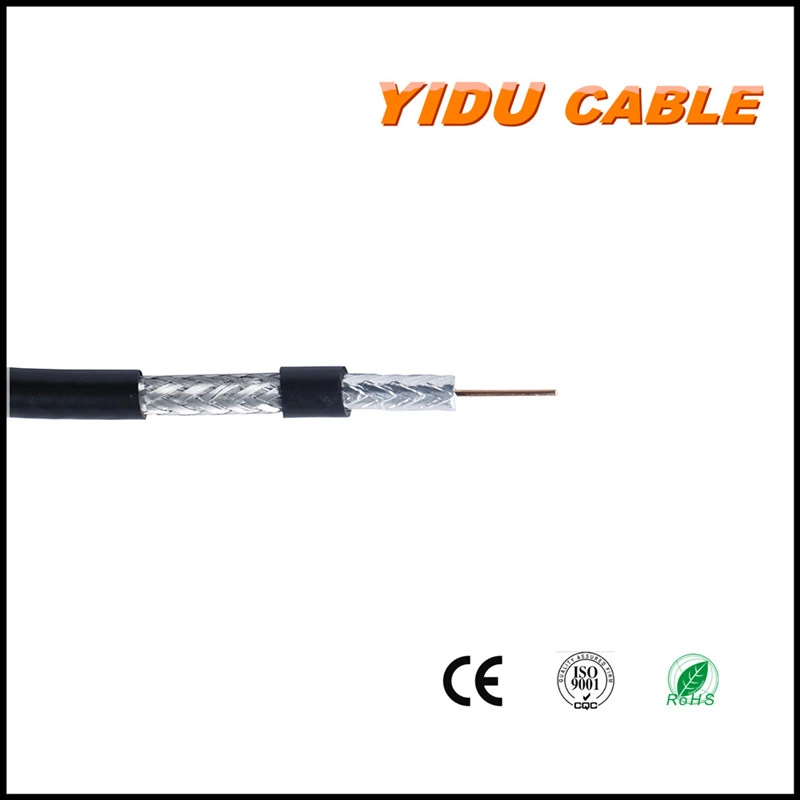

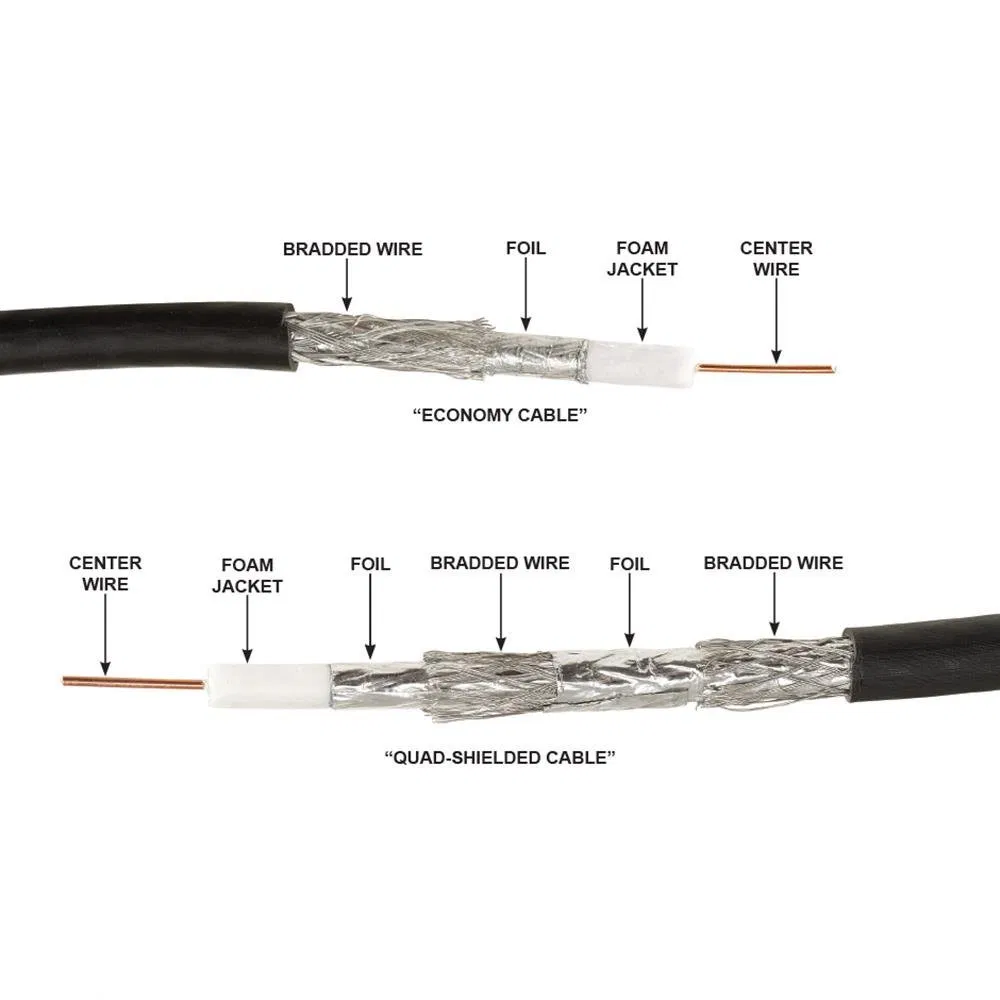

RG6/RG6U coaxial cable specifications | |
Material of Inner Conductor | Bare Copper, CCS |
Structure of Inner Conductor | 1/1.02mm |
Material of Insulation | Foam PE |
Diameter of Insulation | 4.57mm |
1st Shielding | Aluminum Foil |
Material of Braiding(2nd Shielding) | CCA, Bare Copper, Tinned Copper |
Structure of Braiding | 128/112/96/64/48/32*0.12mm |
Material of Jacket | PVC |
Diameter of Jacket | 7.10mm |
Working temp | -40ºC/80ºC |
Impedance | 75Ω±2 |
RG59 / RG59 2C cable Specification | |
| Center conductor | Copper Clad Steel,Bare Copper,Tinned Copper |
| Al-foil | Unbonded AP,Bonded AP,APA |
| Braiding wire | AL_MG, Bare Copper,Tinned Copper |
| Braiding wire diameter | 0.10mm, 0.12mm, 0.13mm, 0.14mm, 0.15mm, 0.16mm |
| Braiding net | 32#, 48#, 64#, 72#, 80#, 96#, 120#, 128#, 144# and more available |
| Braiding coverage | Between 30% - 100% available |
| PVC jacket | Flame resistant, UV,or UL available |
| With Siamese | 2*15*0.15mm, 2*18*0.18mm,2*7*0.38mm, CCA/BC/Tinned Copper |

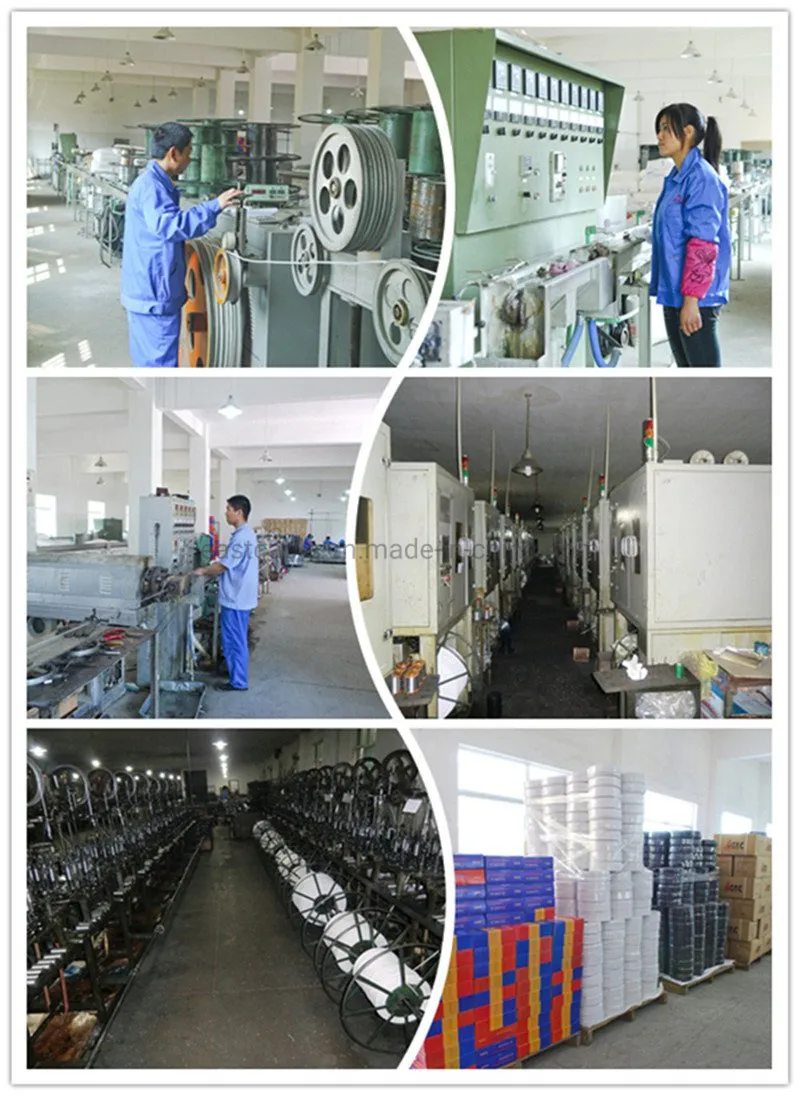

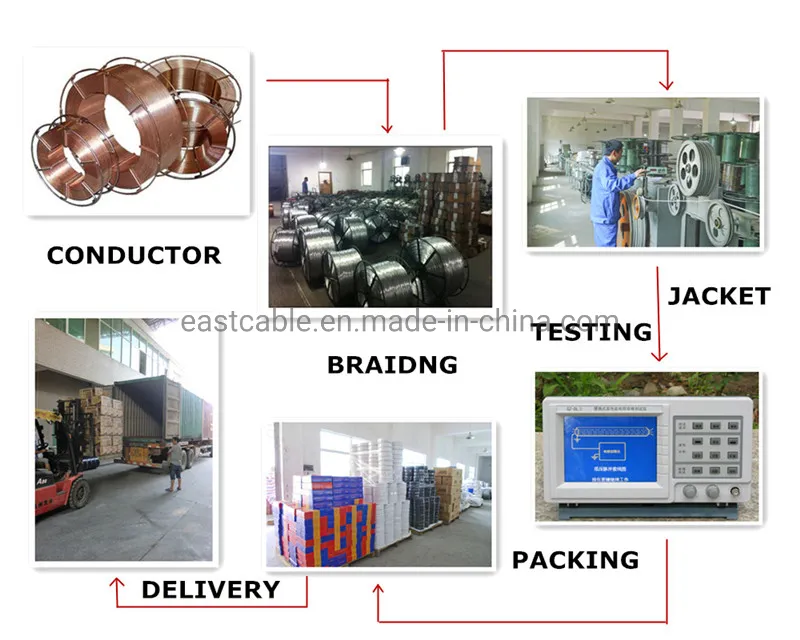

Production Procedure
Packaging & Shipping
Any question for coaxial cable, welcome to contact us!
