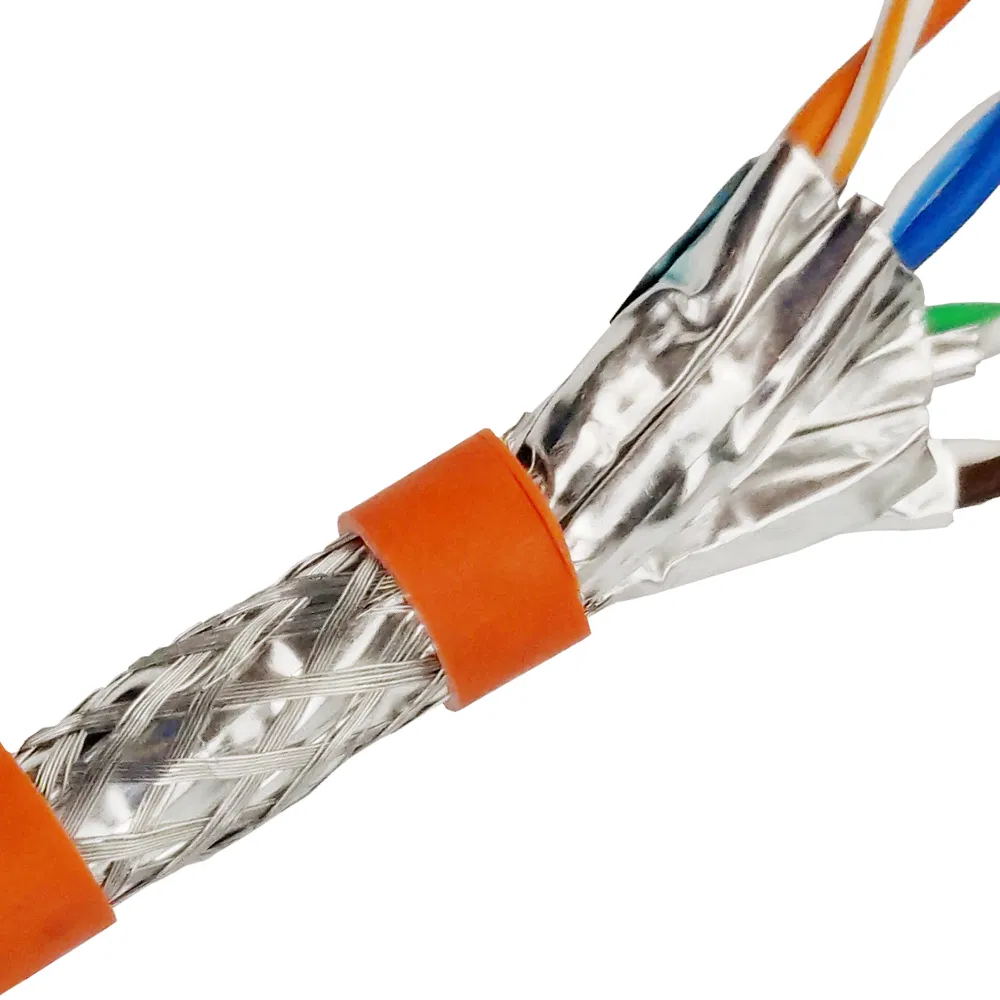

Communication SFTP 0.57mm Aluminum Foil CAT6A Cable 500MHz 10gpbs
Quick DetailsPlace of Origin: Changzhou, ChinaBrand Name: OcsonicModel Number: 20-1214Number of Conductors: 8Type: 10Gbps 500mhz network lan cable 0.57mm cat6aConductor gauge: 23AWGConstruction: UTPColor: BluePackage: Easy pull box+outer carton boxConductor construction: 0.57mmJacket material: LSZHW......
Send Inquiry
Product Description
Quick Details
Place of Origin: Changzhou, ChinaBrand Name: Ocsonic
Model Number: 20-1214
Number of Conductors: 8
Type: 10Gbps 500mhz network lan cable 0.57mm cat6a
Conductor gauge: 23AWG
Construction: UTP
Color: Blue
Package: Easy pull box+outer carton box
Conductor construction: 0.57mm
Jacket material: LSZH
Wire material: Pure solid bare copper
Transmission speed: 10Gbps
Packaging & Delivery
Selling Units: Single item
Single package size: 49X46X45 cm
Single gross weight: 29.700 kg
Package Type: 305m per easy pull box, two boxes per outer carton box
Product Description
UTP Patch Cord Cat5e Cat6 Cat6A
1. Conductor: 24awg 7x0.2mm, 26awg 7x0.16mm
2. Conductor material: Bare copper or CCA
3.Jacket material:PVC/LSZH
4.RJ45 Gold plating from 1U" to 50U"
5.supports data transmission to 1000Mbps
6.Pass Fluke Test.
STP Patch Cord Cat5e Cat6 Cat6A
1. Conductor: 24awg 7x0.2mm, 26awg 7x0.16mm
2. Conductor material: Bare copper or CCA
3.Metal Shell
4.RJ45 Gold plating from 1U" to 50U"
5.supports data transmission to 1000Mbps
6.Pass Fluke Test.
Product Description
| Products | Cat6A S/FTP lan cable | ||
| Conductors | 8(4 pairs) | ||
| Conductor Material | Pure solid bare copper | ||
| Cable AWG | 23 | ||
| Cable Construction | S/FTP | ||
| Frequency | 500Mhz | ||
| Transmission Speed | 10Gbps | ||
| Insulation Material | HDPE | ||
| Jacket Material | LSZH, PVC | ||
| Separator | No | ||
| Ripcord | No | ||
| Insulation Dia | 1.38±0.05mm | ||
| Cable Dia | 7.7±0.3mm | ||
| Length | 305m(1000 feet) | ||
| Color | Orange | ||

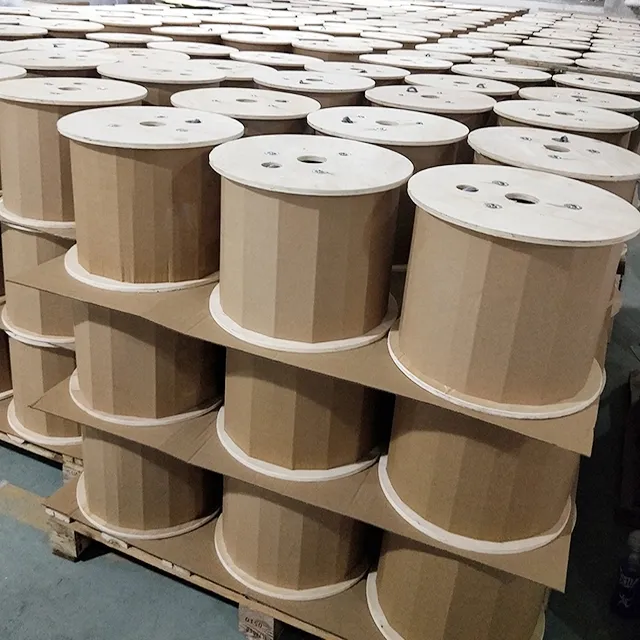

| Package | Wooden reel+outer carton box | ||
| Test | Pass fluke permanent link test | ||
| Certification | UL, ETL, CPR, ISO9001, RoHS, CE | ||
Products Show
1Gbps 250mhz network lan cable 0.57mm cat6

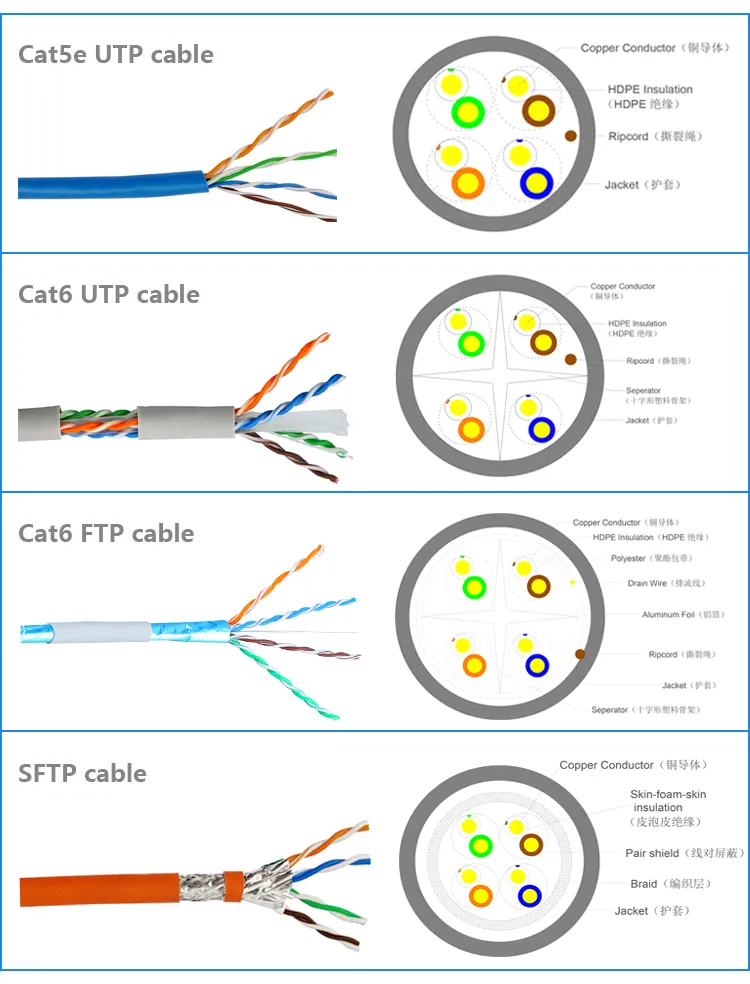

1. CAT5E LAN CABLE
| Cable | Cat5e UTP lan cable |
| Jacket | PVC/LSZH |
| Insulation | PE/HDPE |
| Conductor | 0.48mm, 0.50mm, 0.51mm |
| Wire | 4*2*AWG24, Twisted Pair |
| Material | Pure solid bare copper |
| Insulation Diameter | 0.90±0.05mm |
| Cable Diameter | 5.00±0.30mm |
| Transmission | It supports data transmission to 1000Mbps |
Cable | Cat6 UTP or FTP or SFTP cable, with Cross inside |
Jacket | PVC/LSZH jacket |
Insulation | PE/HDPE |
Conductor | 0.51mm, 0.53mm, 0.55mm, 0.57mm |
Conductor Material | Pure solid bare copper |
Wire | 4*2*AWG23/24, Twisted Pair |
Cross | PE cross |
Insulation Diameter | 1.03±0.08mm |
Cable Diameter | 6.30±0.03mm |
Transmission | It supports data transmission to 1Gbps |

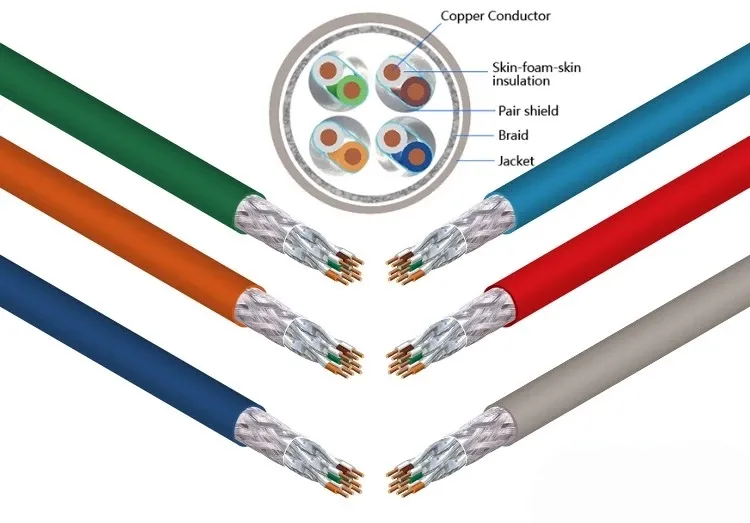

3. CAT6A LAN CABLE
| Cable | Cat6A SSTP/SFTP cable |
| Jacket | PVC/LSZH |
| Insulation | HDPE |
| Conductor | 0.57mm |
| Conductor Material | Pure solid bare copper |
| Wire | 4*2*AWG23, Twisted Pair |
| Insulation Diameter | 1.38±0.05mm |
| Cable Diameter | 7.70±0.30mm |
| Transmission | It supports data transmission to 10Gbps |
Products Show
Packing & Delivery
