Communication Cable UTP Cat5e&CAT6 Fluke Test Pass CPR Ce
Fluke Test Pass CPR CE LAN Cable Cat5e UTP 1. Conductor: 0.50±0.01mm(24AWG) CU/CCA2. Insulation: 0.90±0.03mm HDPE3. Cores/Pairs: 8/44. Sheath: 5.0±0.3mm PVC (PE, LSZH)Options: Jelly Compound, Jacket: UV, RoHS complied.Electrical Performance:Conductor ResistanceMax......
Send Inquiry
Product Description

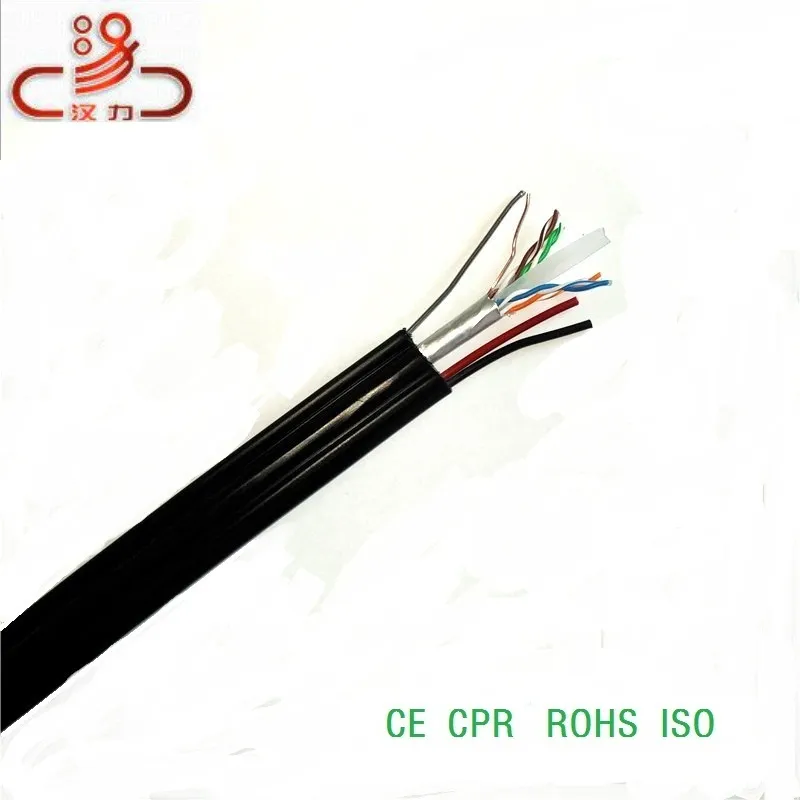

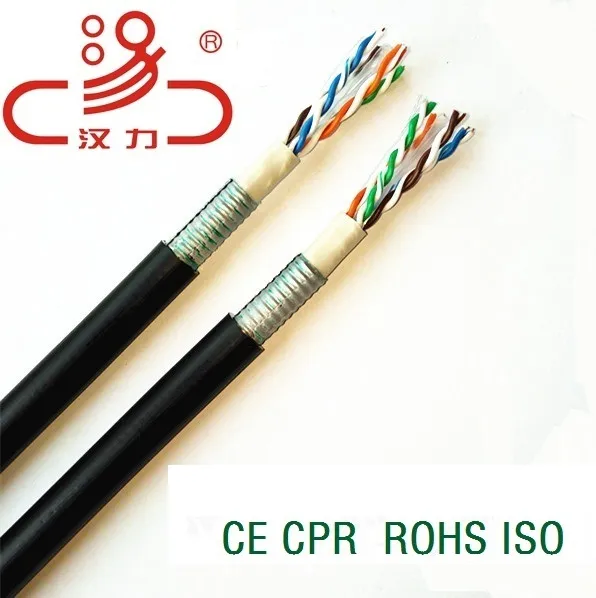

Fluke Test Pass CPR CE LAN Cable Cat5e UTP
1. Conductor: 0.50±0.01mm(24AWG) CU/CCA
2. Insulation: 0.90±0.03mm HDPE
3. Cores/Pairs: 8/4
4. Sheath: 5.0±0.3mm PVC (PE, LSZH)
Options: Jelly Compound, Jacket: UV, RoHS complied.
Electrical Performance:
Technical Performance:
Our Services
Welcome to visit our factory and get our samples.
Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.
Choose us, won't make you disappointed:
1.19 years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
Contact:
Name: Carey zhu
Website: http://kuayuecable.en.made-in-china.com http://kuayuecable.en.made-in-china.com
1. Conductor: 0.50±0.01mm(24AWG) CU/CCA
2. Insulation: 0.90±0.03mm HDPE
3. Cores/Pairs: 8/4
4. Sheath: 5.0±0.3mm PVC (PE, LSZH)
Options: Jelly Compound, Jacket: UV, RoHS complied.
Electrical Performance:
Conductor Resistance | Max. 9.38 ohm/100m |
| Resistance Unbalance | Max. 2% |
| Insulation Resistance | 150 ohm/KM |
| Mutual Capacitance | Max. 5600pF/100m |
| Capacitance Unbalance | Max. 330pF/100m |
| Impedance | 100+/-15 ohm |
| Spark Test | 2000V |
| Velocity of Propagation | 67% |
Technical Performance:
| Attenuation | RL | Next | PS Next | |
| (Mhz) | (dB/100M) | (dB) | (dB) | (dB/100m) |
| 1MHz | 2.0 | 20 | 65.3 | 63.5 |
| 4MHz | 4.1 | 23 | 56.3 | 54.2 |
| 8MHz | 5.8 | 24.5 | 52.4 | 50.5 |
| 10MHz | 6.6 | 25 | 51.3 | 49.2 |
| 16MHz | 8.2 | 25 | 49.3 | 47.4 |
| 20MHz | 9.3 | 25 | 48.8 | 46.9 |
| 25MHz | 10.4 | 24 | 45.3 | 43.4 |
| 31.25MHz | 11.7 | 23 | 43.0 | 41.8 |
| 62.5MHz | 17.0 | 21 | 39.2 | 37.2 |
| 100MHz | 22.0 | 20 | 36.3 | 34.4 |
Welcome to visit our factory and get our samples.
Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.
Choose us, won't make you disappointed:
1.19 years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
Contact:
Name: Carey zhu
Website: http://kuayuecable.en.made-in-china.com http://kuayuecable.en.made-in-china.com
