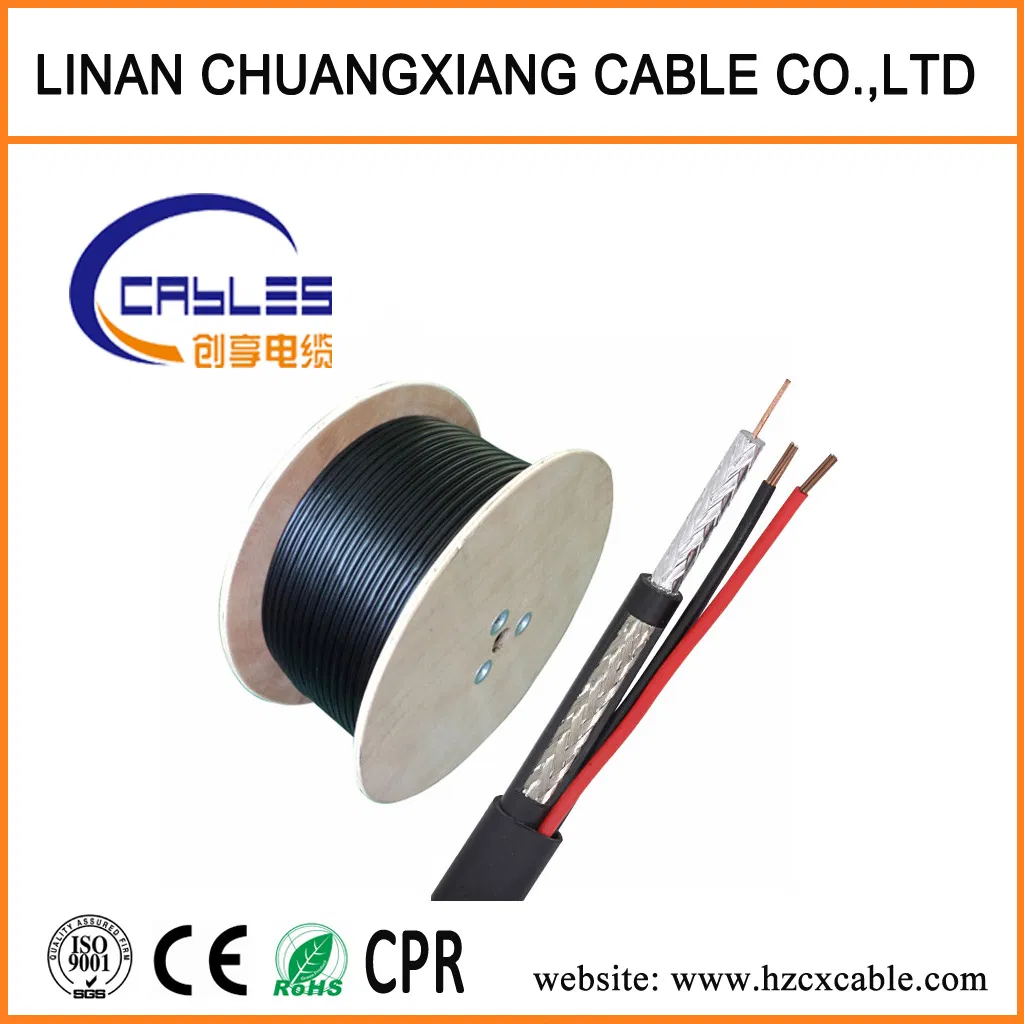

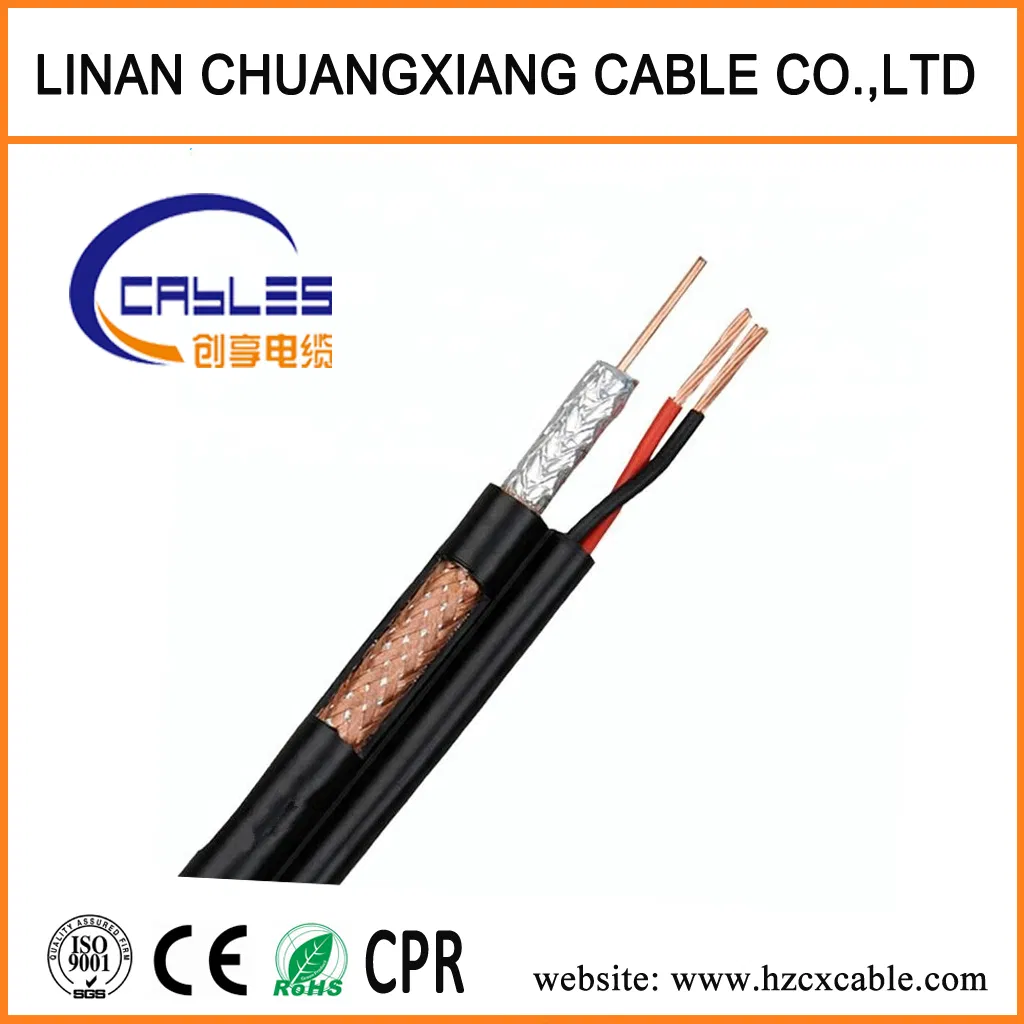

Coaxial Cable Rg59+2c Power Wire Siamese Cable Camera CCTV/CATV Alarm Monitor Security Power Cable Cooper Wire /Copper Clad Steel/ CCA
ItemRG59 with Power Cable for AHD CCTV CameraInner Conductor20AWG CU/CCS Insulation3.66+/-0.2mm Foamed PEShieldAl Foil (Copper Color)Braid Shield64x0.12mm CCA wires Braid (51% Coverage)PVC Jacket6.1+0.1mm PVC JacketPower Cable30x0.15mm CCA+1.7mm Red PE30x0.15mm CCA+1.7mm Black PEOuter Jacket4.0+0.1......
Send Inquiry
Product Description
| Item | RG59 with Power Cable for AHD CCTV Camera |
| Inner Conductor | 20AWG CU/CCS |
| Insulation | 3.66+/-0.2mm Foamed PE |
| Shield | Al Foil (Copper Color) |
| Braid Shield | 64x0.12mm CCA wires Braid (51% Coverage) |
| PVC Jacket | 6.1+0.1mm PVC Jacket |
| Power Cable | 30x0.15mm CCA+1.7mm Red PE |
| 30x0.15mm CCA+1.7mm Black PE | |
| Outer Jacket | 4.0+0.1mm PVC Jacket |
| Note: Customized requirements are welcomed! | |
| Electrical Characteristics | ||
| Impedance: 75+/-3 Ohm | Return Loss | 5-1000MHz≥22dB |
| Capacitance: 52+/-2 pF/M | 1000-2000MHz≥20dB | |
| Velocity of Propagation: 85% | Screening Effectiveness≥70dB | |
| Attenuation(@20ºC) | ||
| Frequency (MHz) | Max Attenuation (dB/100FT) | Max Attenuation (dB/100M) |
| 5 | 0.9 | 2.8 |
| 55 | 2.1 | 6.7 |
| 187 | 3.6 | 11.8 |
| 211 | 3.8 | 12.5 |
| 400 | 5.1 | 16.7 |
| 500 | 5.7 | 18.7 |
| 750 | 7.0 | 22.8 |
| 860 | 7.5 | 24.6 |
| 1000 | 8.0 | 26.3 |
| 1500 | 9.9 | 32.5 |
| 1800 | 10.9 | 35.6 |
| 2200 | 12.6 | 41.2 |
| 3000 | 13.8 | 45.2 |
Low-power video and RF signal connections
Indoor CATV, CCTV system
Siamese cables give you the power to centralize your video and power distribution for your CCTV systems, and allows
for more flexible placement of your security
1,Optical Fiber Cable and Patch Cord
2.Lan and Network Cable and Patch Cord
3.Alarm Cable and Speaker Cable
4.Drop Wire and Telephone Cable
5.Communication Cable
6.Coaxial Cable
7.Electrical Wire and Power Cable
8.Telecom Accessory.
FAQ:
1.Are you the real manufacturer?
Yes. We are the real manufacturer,which is specialized in coaxial cable,lan cable and optical cable,etc.
2.Can you accept small order?
Yes,We support new project of our customers,and we know business is always from small order.
3.What is your delivery time?
Usually within 30days after we received deposit.
4.What is your payment way?
T/T, L/C,it can be negotiated.
5.Can you supply customized products and logo?
Yes. We supply OEM&ODM service.
If you were also interested in our other competitive products,pls do not hesitate to contact me.
