China High Quality Communication Cable CAT6 Pass Fluke Test
China High Quality Communication Cable CAT6 pass fluke testConstruction: 1. Conductor: 0.57±0.01mm(23AWG) Bare Copper2. Insulation: 1.02±0.03mm HDPE3. Cores&......
Send Inquiry
Product Description

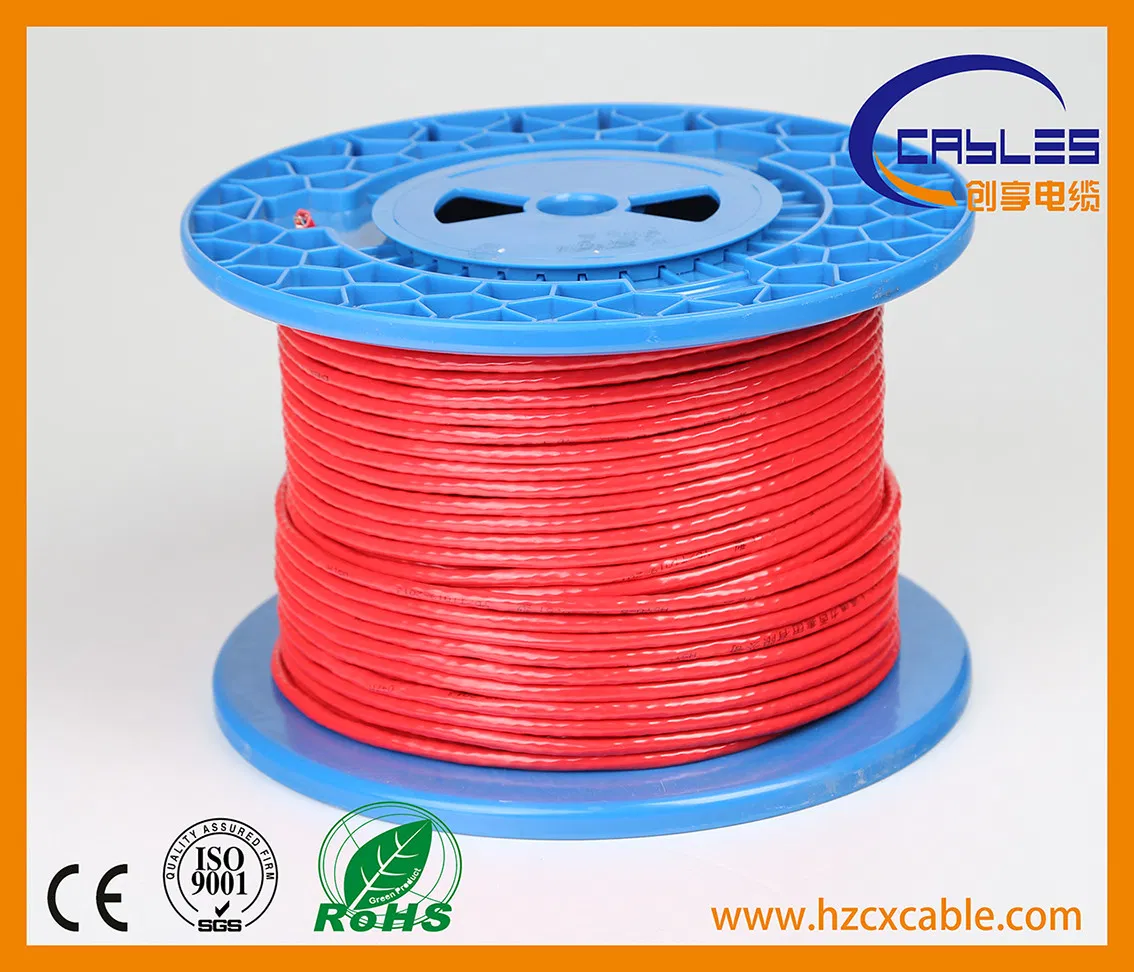

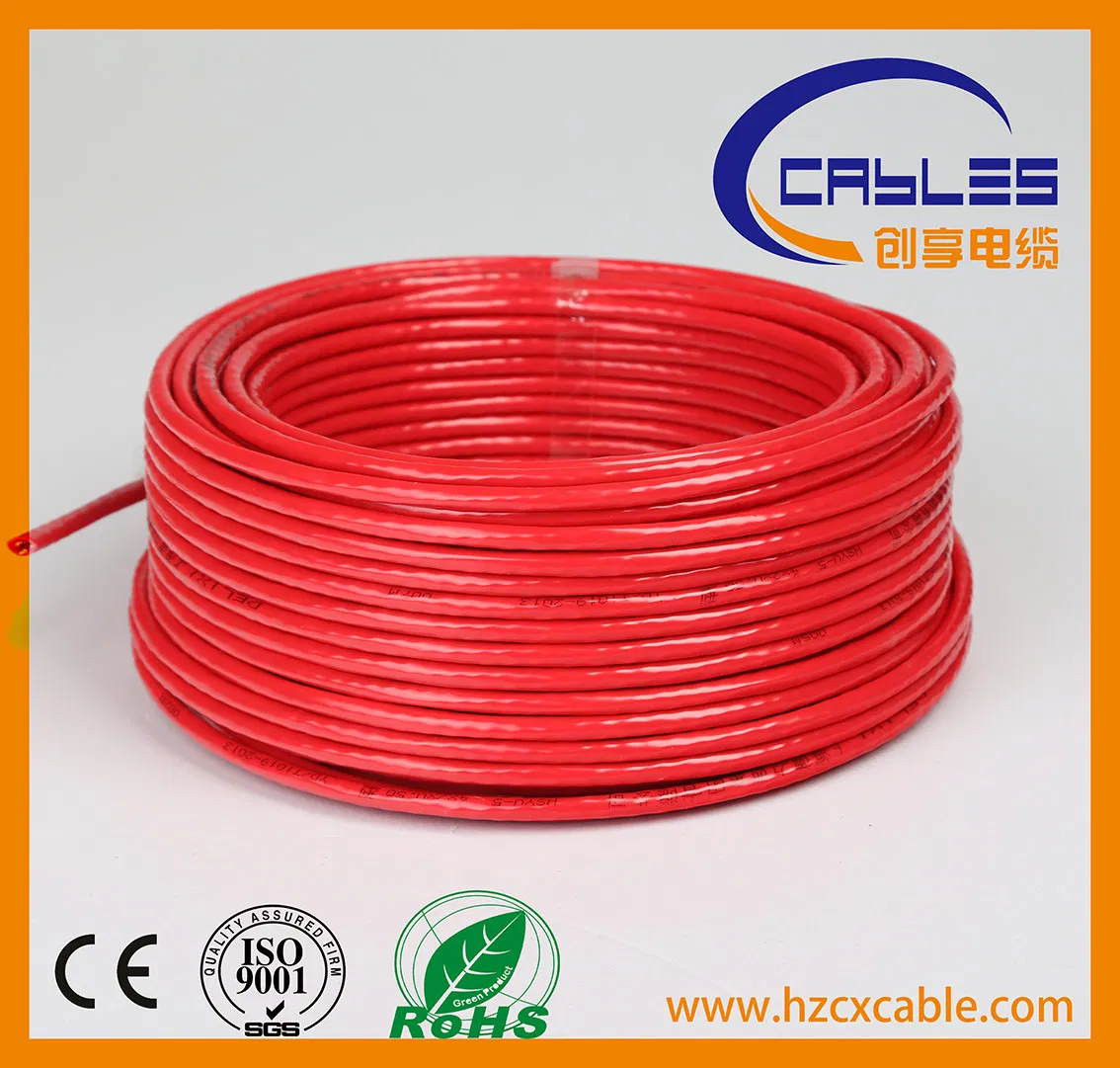

China High Quality Communication Cable CAT6 pass fluke test

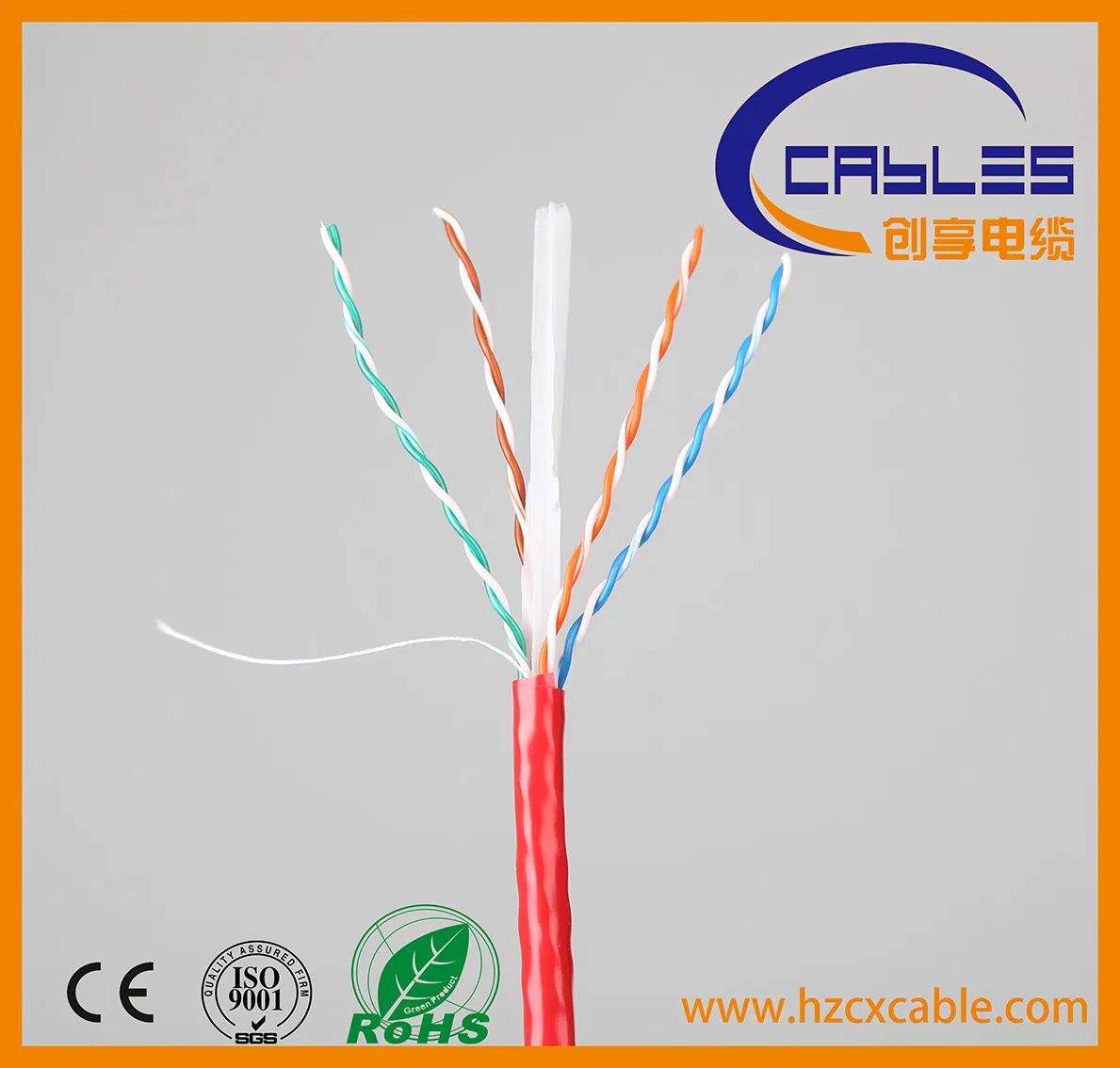

Construction:
1. Conductor: 0.57±0.01mm(23AWG) Bare Copper
2. Insulation: 1.02±0.03mm HDPE
3. Cores/Pairs: 8/4
4. Sheath: 6.0±0.3mm PVC (PE, LSZH)
Options: Jelly Compound, Jacket: UV, RoHS complied.
Electrical Performance:
Technical Performance:
Waiting for your further Contact~
Construction:
1. Conductor: 0.57±0.01mm(23AWG) Bare Copper
2. Insulation: 1.02±0.03mm HDPE
3. Cores/Pairs: 8/4
4. Sheath: 6.0±0.3mm PVC (PE, LSZH)
Options: Jelly Compound, Jacket: UV, RoHS complied.
Electrical Performance:
| 1.0`250.0MHz Impedance(ohms) | 100±15 |
| 1.0~250.0MHz Delay Skew(ns/100m) | ≤45 |
| 20ºC Conductor D.C, Resistance(ohms/km) | ≤65.8 |
| Unbalance of Pair(%) | ≤1.0 |
Technical Performance:
| Frequency (MHz) | Attenuation (dB/100m) | Return loss (dB/100m) | Pair to Pair | |
| NEXT (dB/100m) | ELFEXT (dB/100m) | |||
| 0.77 1 4 8 10 16 20 25 31.25 62.5 100 155 200 300 350 | 1.80 2.00 4.00 5.80 6.50 8.20 9.20 10.40 11.70 17.00 22.00 28.10 32.40 41.00 44.90 | NA 20.00 23.00 24.50 25.00 25.00 25.00 24.30 23.60 21.50 20.10 18.80 18.00 16.80 16.30 | 70.00 68.30 59.30 54.80 53.30 50.30 48.80 47.30 45.90 41.40 38.30 35.50 33.80 32.30 30.20 | 69.00 66.80 54.70 48.70 46.80 42.90 40.70 38.80 36.90 30.80 26.80 22.90 20.70 17.20 15.90 |
Waiting for your further Contact~
