CCTV CATV CPR Eca Rg11 PVC Over Jacket CCTV Coaxial Cable

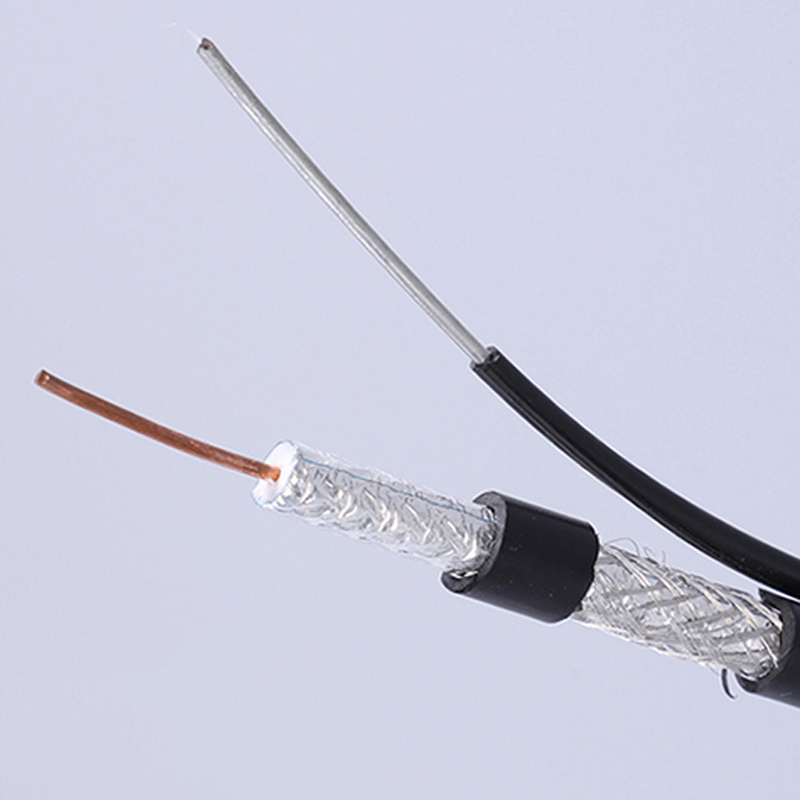

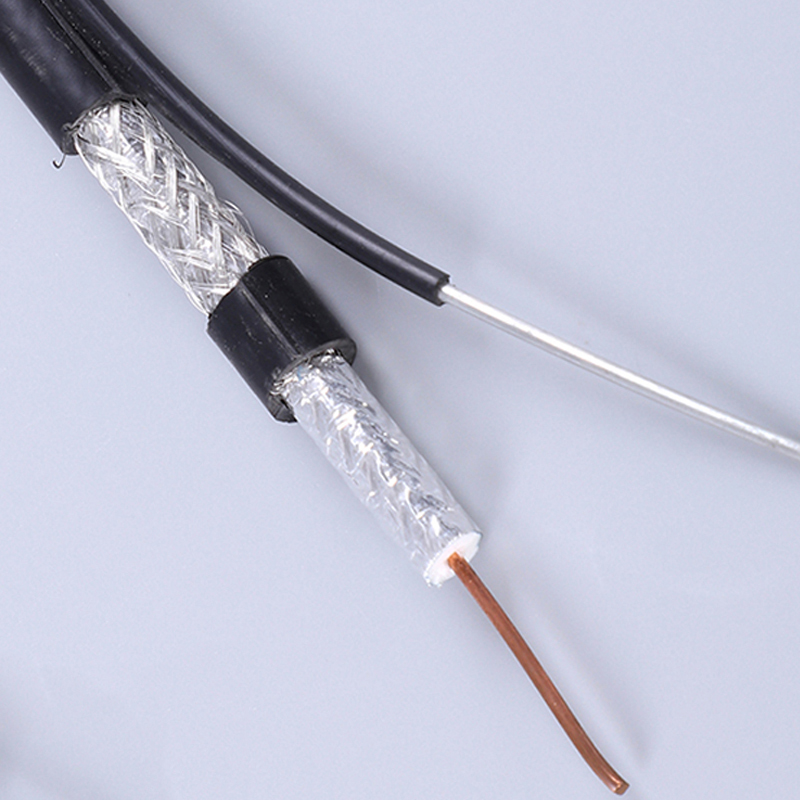

RG11with MESSAGE STANDARD
1) Construction
Center Conductor: 1.63+0.01mm Solid Copper/Copper Clad Steel
Dielectric: 7.11+0.05mmFoam PE
Shield: Bonded Al Foil
Braid Coverage: 60% Al
Jacket: 10.03+0.05mm PVC + 1.83 OR 2.11 MM message
Jelly/APD Per Customers' Special Requirement
2) Characteristics
Impedance: 75+3 Ohm
Capacitance: 54+3pF/m
Velocity of Propagation: 85%
Return Loss: 20dB min (5-2300MHz)

3) Attenuation
Attenuation [@68o F. (20o C. )]
Frequency (MHz) Maximum (dB/100 ft. ) Maximum (dB/100 m)
5 0.38 1.25
55 0.96 3.15
187 1.75 5.74
250 2.05 6.72
300 2.25 7.38
400 2.60 8.53
450 2.75 9.02
500 2.90 9.51
550 3.04 9.97
600 3.18 10.43
750 3.65 11.97
865 3.98 13.05
1000 4.35 14.27


1  Construction



2  Characteristics



3  Attenuation

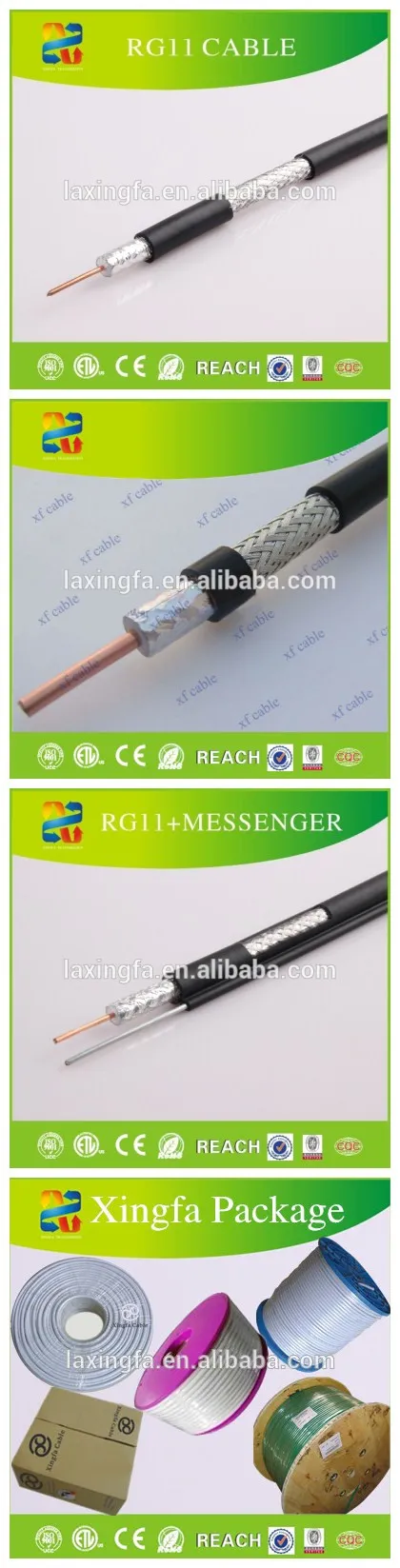

4  Product pictures


5 Packing details

1) Packing Lengths:100/roll,200m/roll,300m/roll,305m/roll, 500m woden reel, 1000m wooden reel

2) Inner Packing:Wooden reel,plastic reel,and paper reel

3) Outer Packing:Carton box,pull out box,pallet available

4) Other packing available according to clients' request

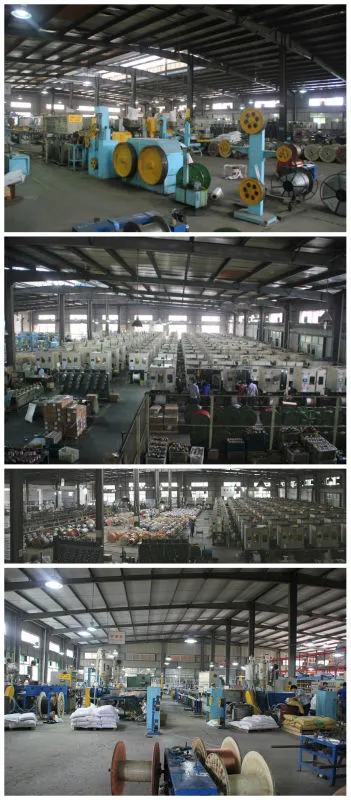

6 Our company











FAQ

What kind of cable do you produce?



We specialize in producing coaxial cable, telephone cable, speaker cable and so on.



What is your MOQ?



 Usually, the MOQ is 10km.



What is your delivery time?



 Usually, our delivery time is 15 days after received deposit. It is base on the quantity of the order.



What is your payment term?



 Usually, we accept T/T.Other payment, we can negotiate with customers.



What is your manner of packing?



 Inner Packing:
100m/roll, 200m/roll,300m/roll,100yards/roll;200yards/roll;300yards/roll
305m (1,000ft) wooden reel, wooden drum, plastic drum

 Outer Packing:
Wooden drum, carton box, pull out box
Or according to client's request.



Can you customize cables basing on customer's sample?



 Yes, of course.
