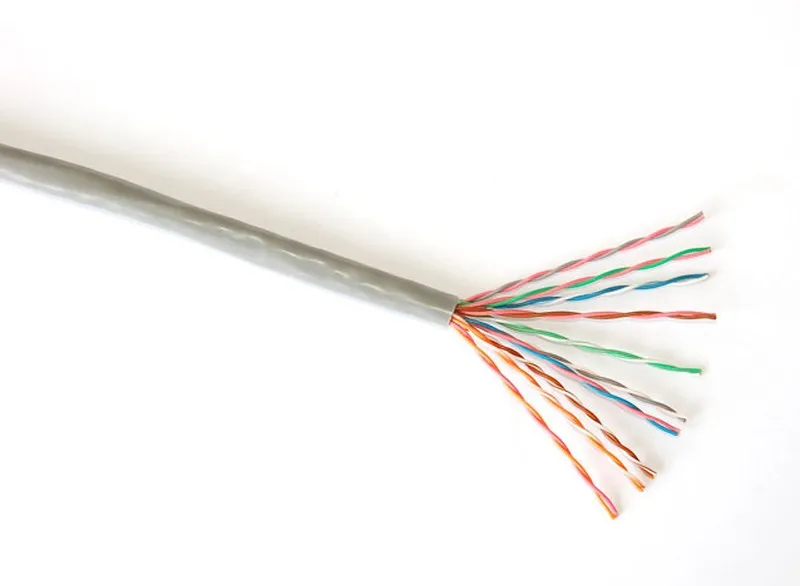

Cat3e UTP 10 50 100 Pair Data LAN Network Cable
China Selling High Quality Low Price UTP Cat 3 10-Pair Cable 1.Application Category 3 is an unshielded twisted pair (UTP) cable designed to reliably carry data up to 10 Mbit/s, with a possible bandwidth of 16 MHz. It is part of a family of copper cabling standards defined jointly by the Elect......
Send Inquiry
Product Description
China Selling High Quality Low Price UTP Cat 3 10-Pair Cable
1.Application
Category 3 is an unshielded twisted pair (UTP) cable designed to reliably carry data up to 10 Mbit/s, with a possible bandwidth of 16 MHz. It is part of a family of copper cabling standards defined jointly by the Electronic Industries Alliance and the Telecommunications Industry Association.
2.Brief Specification
Center Conductor: 0.50±0.005 Bare Copper
Dielectric: 0.88 ±0.03mm HDPE
Jacket: 19.8±0.4mm PVC
Nom. Thick: 0.55 ± 0.05mm
4. Detailed Data Sheet
Product Description:
Reted temperature: 60°C, 75°C, 90°c Reference Standard: UL444,UL1581 Bare Solid copper conductor RoHS/REACH Complied PVC,PE or LSZH Jacket Complies to TIA/EIA-568-C.2& ISO/IEC 11801 Installation temperatu: -30°c±50°c Minimum bending radius: >4P 4D | Application: 100 Base-TX 100 Base-T4 100VG-AnyLAN 1000 Base-T(Gigabit Ethernet ATM)
| |||||
| Content of Data Sheet | ||||||
| Category | UTP CAT3-100 Pairs -PVC | |||||
| test Standard | ISO/IEC11801 TIA-568-C.2 YD/T1019 | |||||
| Conductor | Material | Solid Bare copper | ||||
| Nom.O.D.(mm) | 0.500±0.005mm | |||||
| Insulation | Material | HDPE | ||||
| Diameter | 0.88±0.03mm | |||||
| Sheath | Thickness | 0.50±0.05mm | Sheath Physical Properties | Before Aging Tensile Stength(Mpa)≥13.5 Elongation(%)≥150 | ||
| External O.D. | 19.8±0.4mm | Aging Period(°c×hrs) 100°c×24h×7d | ||||
| Surface | Clean,Frap,Satiation | After Aging Tensile Stength(Mpa)≥12.5 Elongation(%)≥125 | ||||
| Material | PVC | Cold Bend(-20± 2°c× 4h 8×Cable O.D. | ||||
| Color | According to requires | Electrical Characteristics(20°C) | 1.0-100.0MHz Impedance 100±15 ohm | |||
| Printing | Letter Height | 3.0 ± 0.3mm | Delay Shew(ns/100m) ≤45 | |||
| Color | Black | |||||
| Print error&Space | ≤±0.5%,1m | NVP 69% | ||||
| Core Color | 1 White-Blue/Blue | 2 White-Orange/Orange | Capacitance(nF/100m)max: 5.6 | |||
| Packing | As requires | DC Resistance(Ω/100m)max:9.5 | ||||
| Carton Dimension | As requires | |||||
| Packing Length | As requires | DC Conductor Resistance Unbalance(%)max 5.0 | ||||
| Rip-cord | YES | Drain Wire | NO | |||
5.Technical Performance(100m):
| Frequency MHz | RL ≥dB | Attenuation ≤dB/100m | NEXT ≥dB/100m | PS NEXT ≥dB/100m | Impedance Ohms |
| 1 | 12.0 | 2.6 | 41.3 | 41.3 | 100±15 |
| 4 | 12.0 | 5.6 | 32.3 | 32.3 | |
| 8 | 12.0 | 8.5 | 27.8 | 27.8 | |
| 10 | 12.0 | 9.7 | 26.3 | 26.3 | |
| 16 | 10.0 | 13.3 | 23.3 | 23.3 |
Q1:Are you a trading company or manufacturer?
We are professional manufacturer for audio&video cable . also we supply of different electrical and electronic items
Q2: why will you choice us :
more than 15 years of professional teams will give you good quality products ,good service ,and reasonable price .
Q3:Can we have our logo or company name to be printed on your products or the package?
We offer OEM , ODM . our designer can make special design for you .
Q4: Is the MOQ fixed?
The MOQ is flexible and we accept small order as trial order.
Q5:Can I have a visit to you before the order?
Sure,welcome to visit our company ..
our company is only one hour by train from shanghai
