50ohm 75ohm Coaxial Digital Signal Data Communication Cable
Structure:Inner conductor: Cu/CCA/CCSDielectric: Foam PEShield: Al-tube, Al-Mg/Tin Plated Copper BraidJacket: PE/PVCApplication:Coaxial cable is a signal transmission wire. They are mainly used in television broadcasting, long-distance telephone transmission, short-distance connections between compu......
Send Inquiry
Product Description

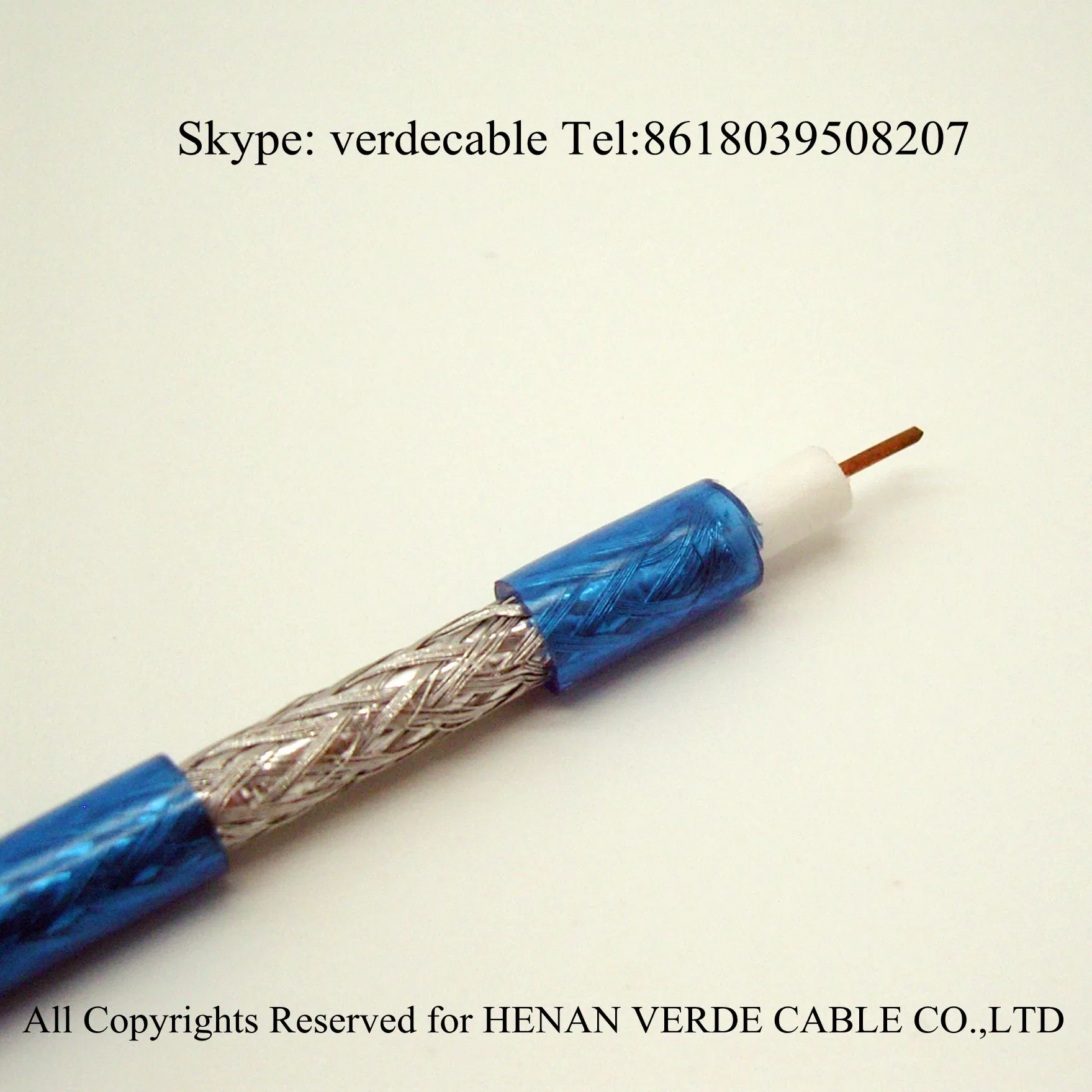

Structure:
Inner conductor: Cu/CCA/CCS
Dielectric: Foam PE
Shield: Al-tube, Al-Mg/Tin Plated Copper Braid
Jacket: PE/PVC
Application:
Coaxial cable is a signal transmission wire. They are mainly used in television broadcasting, long-distance telephone transmission, short-distance connections between computer systems, and local area networks.
Specification:
Electrical characteristics:
3.Packing:

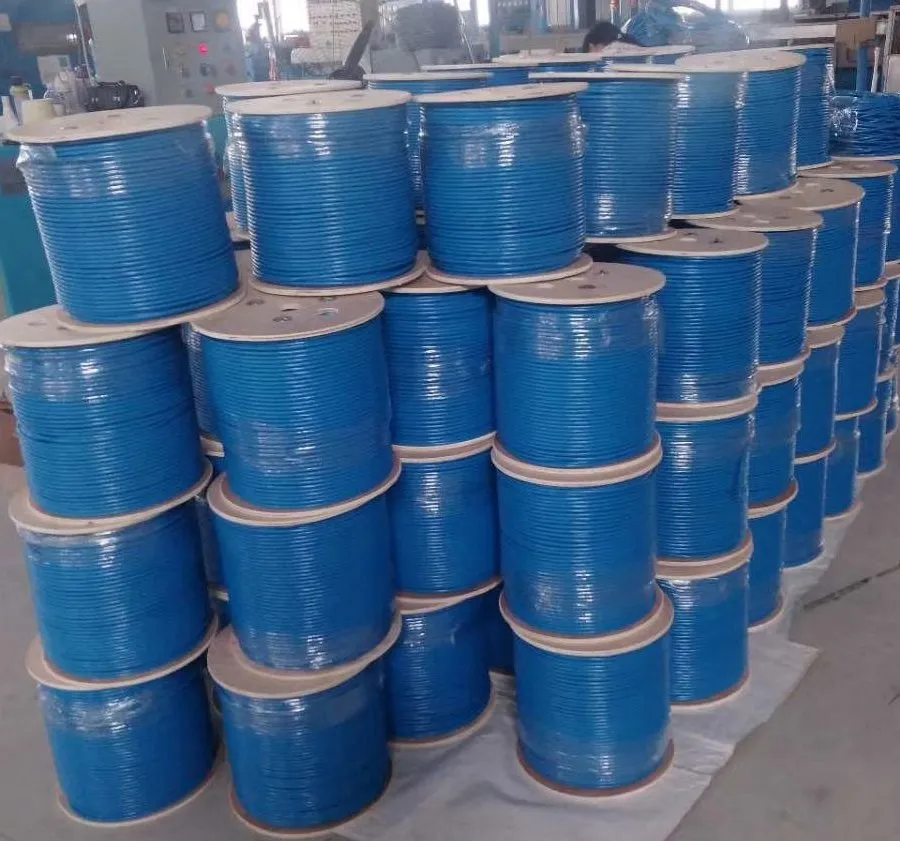

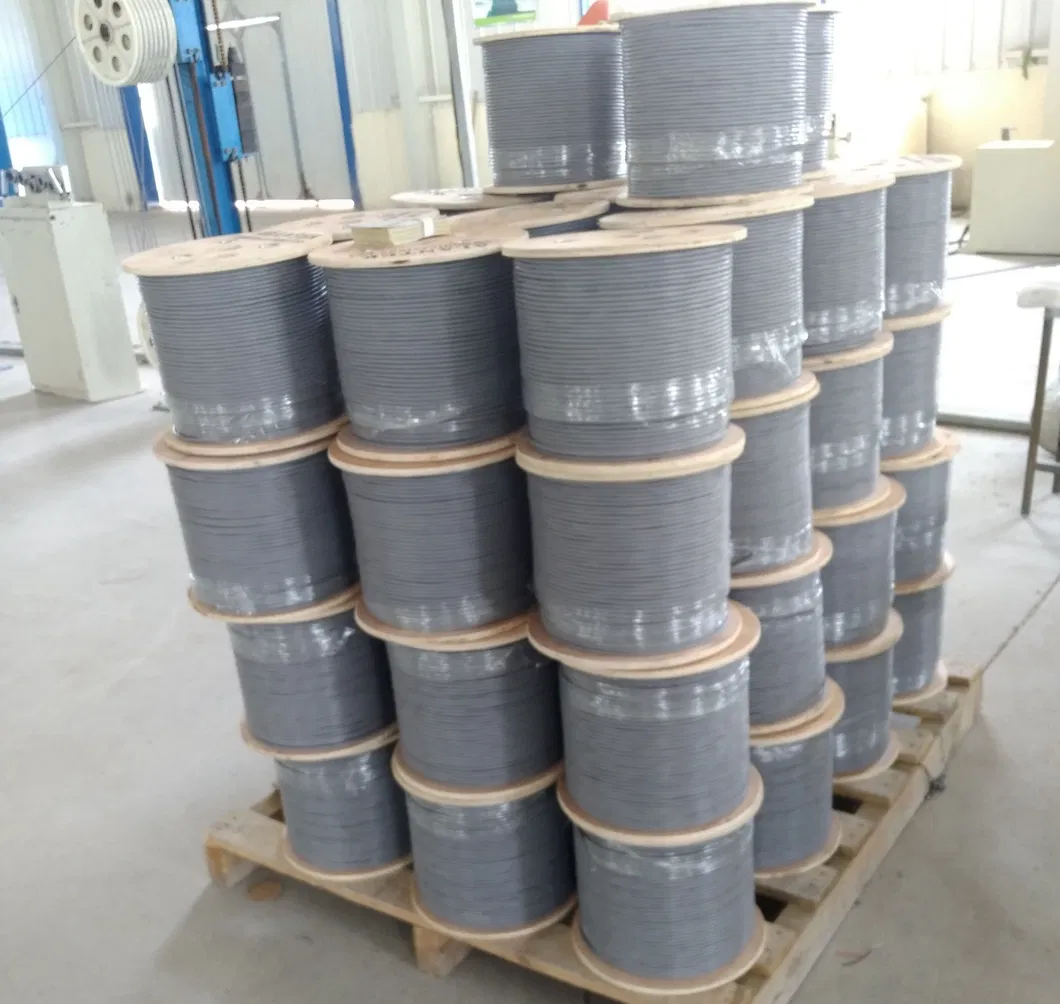

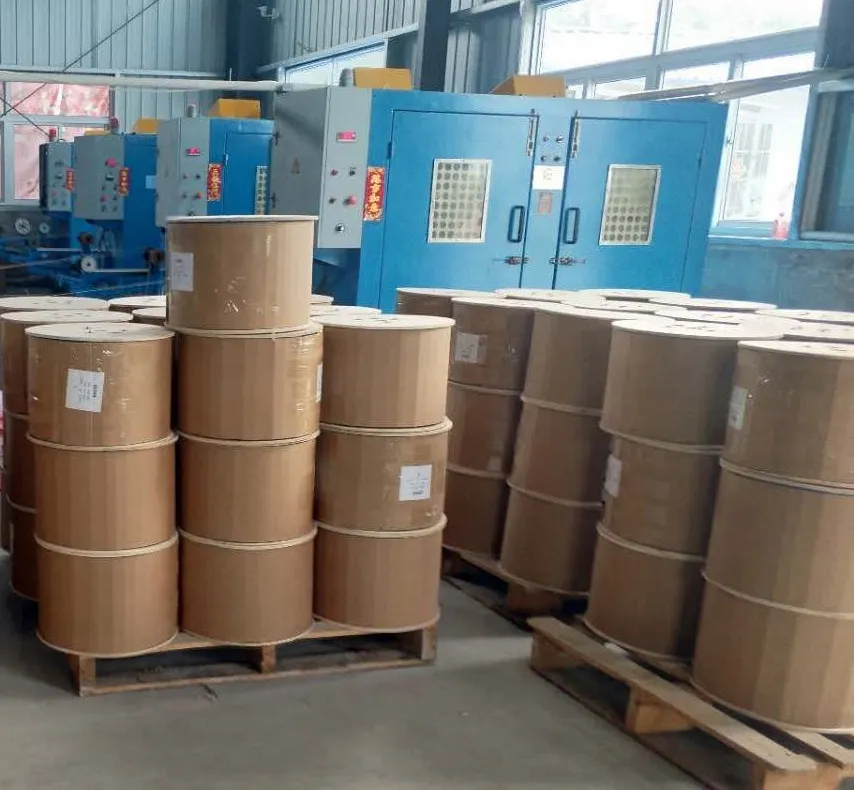

305meter per roll.then put into carton
Different packing way can be designed and made as per customer's requirement
Different Colored Cable can be Customized as per customer's requirement
Workshop:
If you want to know more about us and our products,pls contact us.
Linda Lee
Vice General Manager
HENAN VERDE CABLE CO.,LTD
Focus on Wires and Cables
Be Your Most Reliable Supplier
Inner conductor: Cu/CCA/CCS
Dielectric: Foam PE
Shield: Al-tube, Al-Mg/Tin Plated Copper Braid
Jacket: PE/PVC
Application:
Coaxial cable is a signal transmission wire. They are mainly used in television broadcasting, long-distance telephone transmission, short-distance connections between computer systems, and local area networks.
Specification:
| Standard shield | Tri-Shield | Quad-Shield | ||
| Conductor | Material | BC/CCS | BC/CCS | BC/CCS |
| Nominal Diameter | 20AWG | 20AWG | 20AWG | |
| Dielectric | Material | Foam PE | Foam PE | Foam PE |
| Nominal Diameter | 3.66mm | 3.66mm | 3.66mm | |
| Shield | Material | Al Foil+ Al Braiding | Al Foil+ Al Braiding+ Al Foil | (Al Foil+ Al Braiding)*2 |
| Coverage | 40%-95% | 40%-95% | 35%-53% | |
| Jacket | Material | PVC/PE | PVC/PE | PVC/PE |
| Nominal Thickness | 0.80mm | 0.80mm | 0.86mm | |
| Nominal Diameter | 6.10mm | 6.10mm | 6.70mm | |
Electrical characteristics:
| Nominal Impedance(ohm) | 75±3 | ||
| Nominal Velocity of propagation(%) | 85 | ||
| Nominal Capacitance(pf/m) | 50 | ||
| Spark Test(VAC) | 2500 | ||
| SRL(dB) | 20 | 20 | |
| Attenuation [68o F(20OC)] | Frequency(MHz) | Minimum(dB/100ft) | Minimum(dB/100ft) |
| 5 | 0.86 | 2.82 | |
| 55 | 2.05 | 6.73 | |
| 187 | 3.6 | 11.81 | |
| 300 | 4.45 | 14.6 | |
| 450 | 5.4 | 17.72 | |
| 600 | 6.2 | 20.34 | |
| 750 | 6.97 | 22.87 | |
| 865 | 7.52 | 24.67 | |
| 1000 | 8.12 | 26.64 | |
3.Packing:
305meter per roll.then put into carton
Different packing way can be designed and made as per customer's requirement
Different Colored Cable can be Customized as per customer's requirement
Workshop:
If you want to know more about us and our products,pls contact us.
Linda Lee
Vice General Manager
HENAN VERDE CABLE CO.,LTD
Focus on Wires and Cables
Be Your Most Reliable Supplier
