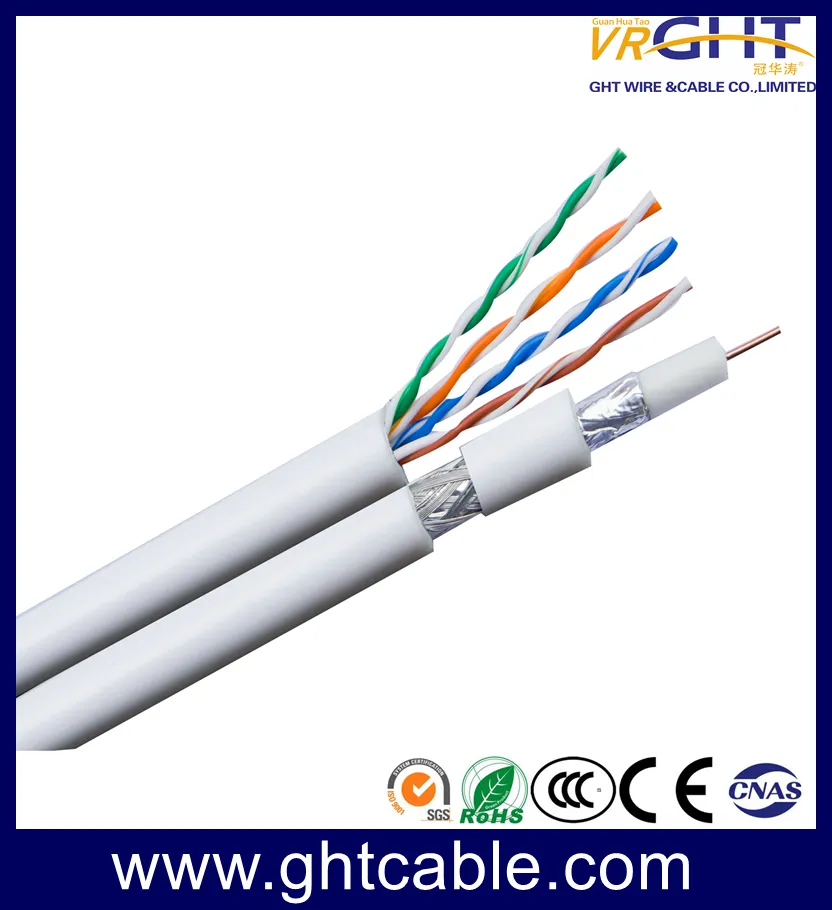

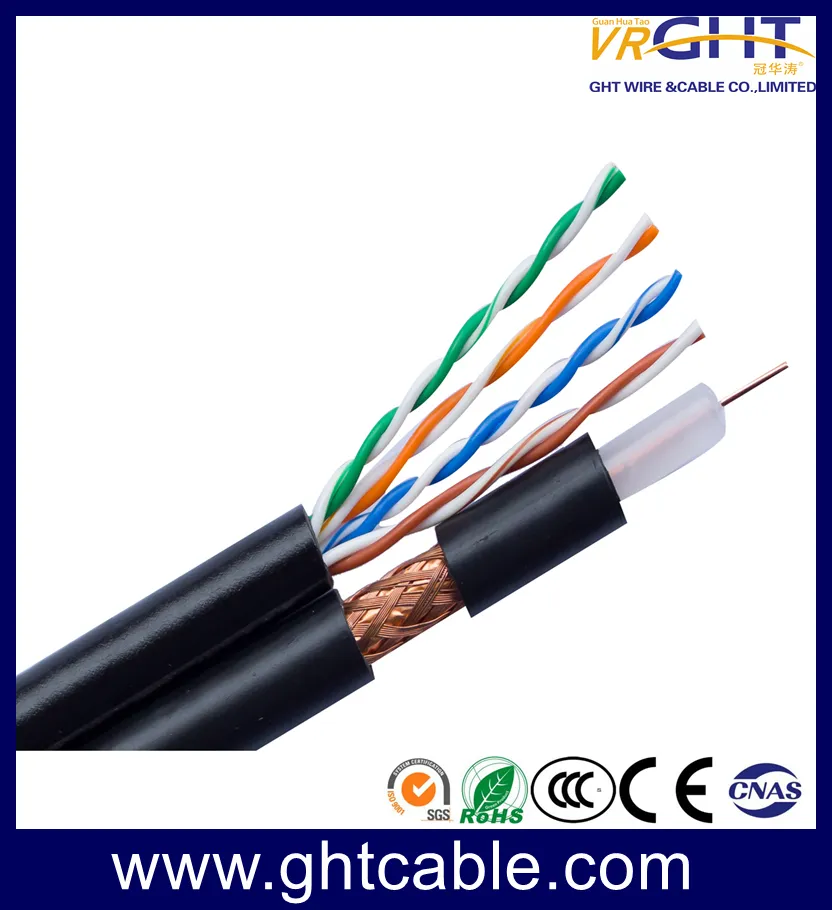

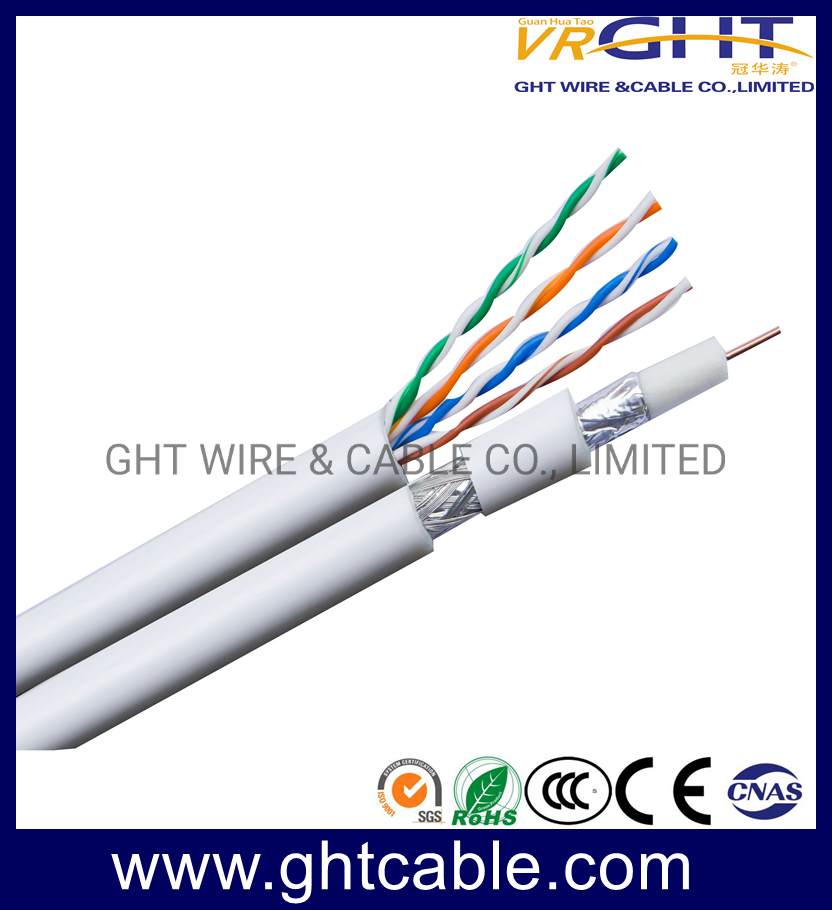

4p UTP Cat5e Cable & RG6 75ohm Muti-Media RG6 (Tri Shield)
Coaxial Cable Series75Ohm Muti-Media RG6 (Tri Shield)PART 1RG6 TRINo.StructureMaterial1Conductor BC/CCS (1.02mm)2Dielectric FPE (4.57mm)31st ShieldAl Foil (100%, Overlap >2mm)42nd ShieldBC or AL Braiding (60%)53rd ShieldAl Foil (100%, Overlap >2mm)6Jacket PVC/PE (7.62mm /0.30") PART 2UTP ......
Send Inquiry
Product Description
Coaxial Cable Series
75Ohm Muti-Media RG6 (Tri Shield)
| PART 1 | RG6 TRI | No. | Structure | Material |
| 1 | Conductor | BC/CCS (1.02mm) | ||
| 2 | Dielectric | FPE (4.57mm) | ||
| 3 | 1st Shield | Al Foil (100%, Overlap >2mm) | ||
| 4 | 2nd Shield | BC or AL Braiding (60%) | ||
| 5 | 3rd Shield | Al Foil (100%, Overlap >2mm) | ||
| 6 | Jacket | PVC/PE (7.62mm /0.30") | ||
| PART 2 | UTP CAT5E | 1 | Conductor | Bare solid copper |
| 2 | Insulation | Colourcoded PE | ||
| 3 | water proof tape | Optional | ||
| 4 | Polyester | Optional | ||
| 5 | Rip cord | Optional | ||
| 6 | Jacket | Lead free PVC or LSZH | ||
| Note: Other specification can be made upon customer requirements. | ||||
| Dielectic Adhesion | >20N/5cm | |
| Breaking Strength of Messenger | 1.30mm 82kgf; 1.83mm 166kgf | |
| Impendence | 75±3 Ohm | |
| Capacitance | 50±3.0 nf/KM | |
| Velocity of Propagation | 83±2% | |
| Shielding | 55MHz | ≥60dB |
| Effectiveness | 300MHz | ≥70dB |
| 1000MHz | ≥70dB | |
| Return Loss (100% swept) | 1 ~470MHz | ≥22dB |
| 470-1000MHz | ≥20dB | |
| 1000~2200MHz | ≥18dB | |
Application:
Video monitoring,
Radio signal control,
CATV,CCTV,
telecommunication,
transmission system,
communication system,
control system.
Delivery Day: 20days after receiving the T/T payment.
Port: Guangzhou Port.
Packing
Factory Presentation&Certification
FAQ
Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, HDMI cable, VGA cable, telephone cable, speaker cable and etc.
Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.
Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.
Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.
Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.
Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.
Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.
