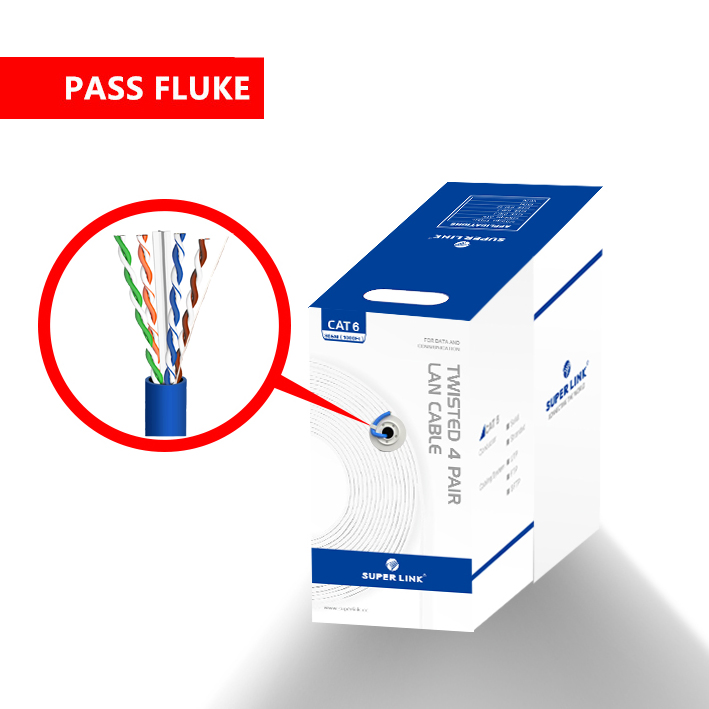

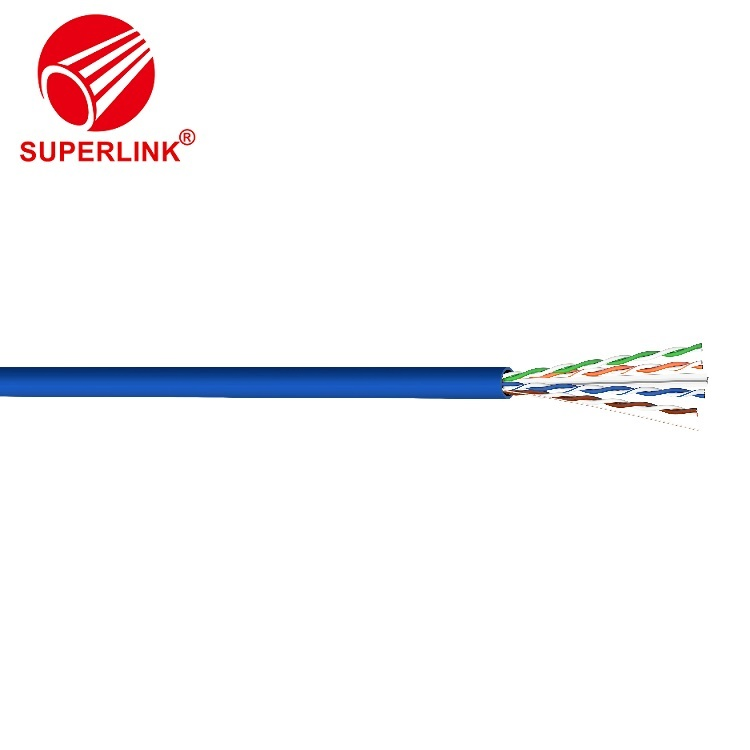

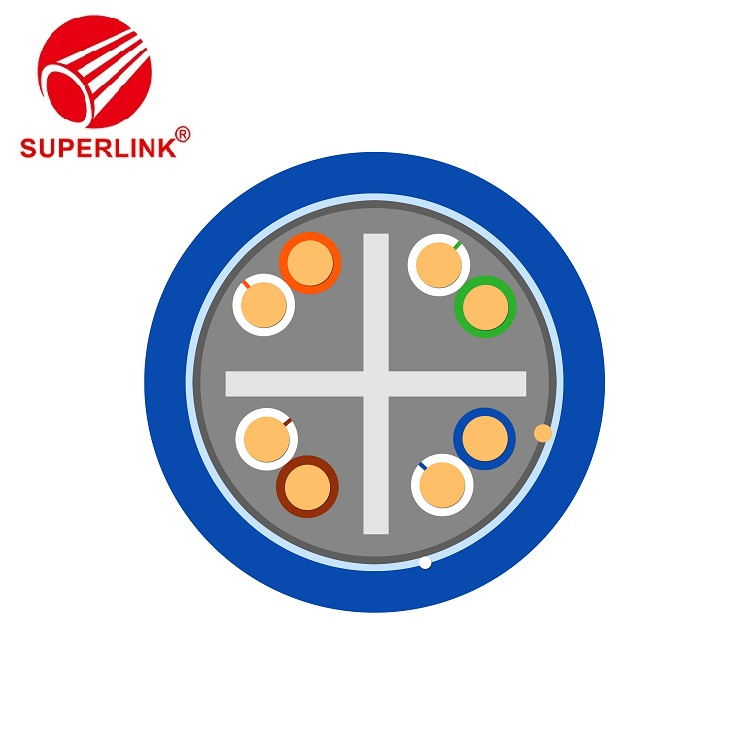

305m 4 Pair Ethernet LAN Cable Cat 6 UTP/FTP 0.53 Cu/CCA Network Cable CAT6 Cable
Application1. Specialized for structured cabling, language transmission, data signal spreading, and it can be appropriate for the network connection between the wireless device terminal like computer,TV,router,TV set-top box and other equipment.2. Apply to the current high bandwidth applications and......
Send Inquiry
Product Description
Application
1. Specialized for structured cabling, language transmission, data signal spreading, and it can be appropriate for the network connection between the wireless device terminal like computer,TV,router,TV set-top box and other equipment.
2. Apply to the current high bandwidth applications and intelligent solutions.
1. Specialized for structured cabling, language transmission, data signal spreading, and it can be appropriate for the network connection between the wireless device terminal like computer,TV,router,TV set-top box and other equipment.
2. Apply to the current high bandwidth applications and intelligent solutions.
Electrical Characteristics (HF) At 20ºC | ||||||||
Frequency(100m) | RL | IL | DOP | Delay Skew | Next | PSNEXT | ACR-F | PS ACR-F |
(MHz) | (dB) | (dB) | (ns) | (ns) | (dB) | (dB) | (dB) | (dB) |
1 | 20.0 | 2.2 | 570 | 45 | 65 | 62 | 61 | 61 |
4 | 23.0 | 4.2 | 552 | 45 | 56 | 53 | 48 | 48 |
10 | 25.0 | 6.5 | 545 | 45 | 50 | 47 | 41 | 41 |
16 | 25.0 | 8.4 | 543 | 45 | 47 | 44 | 36 | 36 |
20 | 25.0 | 9.3 | 542 | 45 | 45 | 42 | 34 | 34 |
31.25 | 23.6 | 11.6 | 540 | 45 | 42 | 39 | 31 | 31 |
62.5 | 21.5 | 17.0 | 538 | 45 | 38 | 35 | 25 | 25 |
100 | 20.1 | 22.0 | 537 | 45 | 35 | 32 | 21 | 21 |
Note:The above transmission performance for the 100M, 20±2°C under the conditions tested. | ||||||||
