Product Description

Terms:

1.OEM is welcomed

2.ISO/CE/ETL/ROHS/UL/SONCAP and other certifications are available

3.Competitive price and high quality offered.

4. Best service for you!

Basic Info:

1. Name: : Alarm Cable

2. Structure:

Conduct---pure copper/copper clad aluminum

Insulation---blue/yellow/pink/grey/others you like

3. Size:

According to Standard/Sample/Customer's request.

4. The material of the inner conductor and outer sheath materials in accordance with customer requirements.

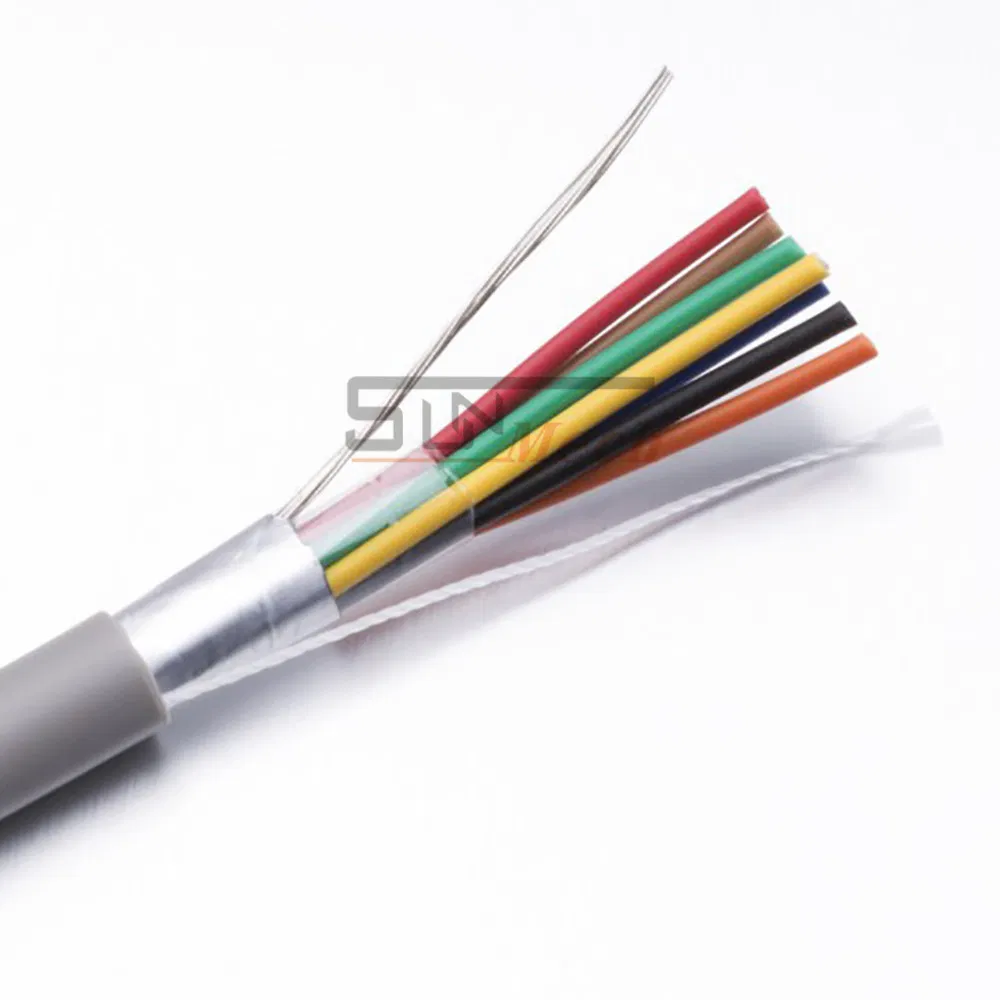

High Quality 6 Cores Alarm Cable Security System Alarm cable

Product description:

1. Conductor: Bare copper,Tinned copper ,Tinned CCA, CCA.

2. Insulation:PVC-flame proof

3. Cable core: 2, 4, 6, 8, 12,...20 are available

4. Shield: Al/polyester foil

5. Rip cord: synthetic fibers

6. Drain wire: CU/TC/TCCA/CCA

7. Jacked: PVC-flame proof.

Specification	Security System Alarm Product Description
Alarm Cable 2Cx0.22mm²	2CX7/0.20mmOFC I.D:1.0mmPVC O.D:3.2mmPVC
4Cx0.22mm²	4CX7/0.20mmOFC I.D:1.0mmPVC O.D:3.6mmPVC
6Cx0.22mm²	6CX7/0.20mmOFC I.D:1.0mmPVC O.D:4.1mmPVC
8Cx0.22mm²	8CX7/0.20mmOFC I.D:1.0mmPVC O.D:4.5mmPVC
10Cx0.22mm²	10CX7/0.20mmOFC I.D:1.0mmPVC O.D:5.2mmPVC
12Cx0.22mm²	12CX7/0.20mmOFC I.D:1.0mmPVC O.D:5.5mmPVC
2Cx0.22mm²	2CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:3.2mmPVC
4Cx0.22mm²	4CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:3.6mmPVC
6Cx0.22mm²	6CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:4.1mmPVC
8Cx0.22mm²	8CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:4.5mmPVC
10Cx0.22mm²	10CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:5.2mmPVC
12Cx0.22mm²	12CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:5.5mmPVC
2Cx0.22mm²	2CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:3.3mmPVC
4Cx0.22mm²	4CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:3.8mmPVC
6Cx0.22mm²	6CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:4.2mmPVC
8Cx0.22mm²	8CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:4.6mmPVC
10Cx0.22mm²	10CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:5.3mmPVC
12Cx0.22mm²	12CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:5.6mmPVC
2Cx0.22mm²	2CX7/0.20mmOFC I.D:1.0mmPVC+7/0.20mmCU Ground+AL+96/0.12mmTC Weave O.D:3.8mmPVC
4Cx0.22mm²	4CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+128/0.12TC Weave O.D:4.0mmPVC
6Cx0.22mm²	6CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+128/0.12TC Weave O.D:4.6mmPVC
8Cx0.22mm²	8CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+144/0.12TC Weave O.D:5.0mmPVC
10Cx0.22mm²	10CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+144/0.12TC Weave O.D:5.8mmPVC
12Cx0.22mm²	12CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+160/0.12TC Weave O.D:6.5mmPVC
